Manufacturer: Daiichi Electronics Co., Ltd.

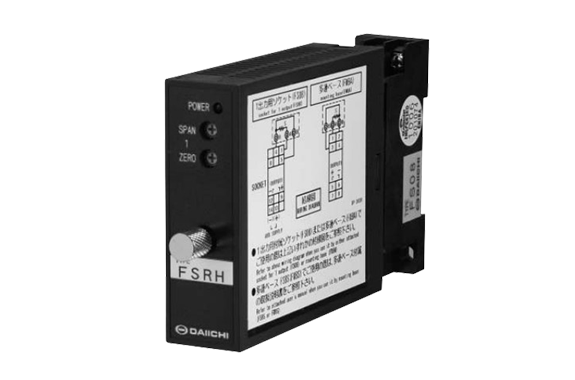

Model: FSRH

Features

• Compact size with high insulation voltage design.
• Input, output, auxiliary power, and case are mutually isolated with withstand voltage of AC 2,000 V (50/60 Hz) for 1 minute.
• Constant voltage/current output type, so no adjustment required when used within the rated load resistance range.
• Power status is indicated with an LED. Zero and span adjustments are possible (±2% adjustable).
• Burnout function can be specified as either positive burnout or negative burnout. This device uses a 3-wire wiring type.

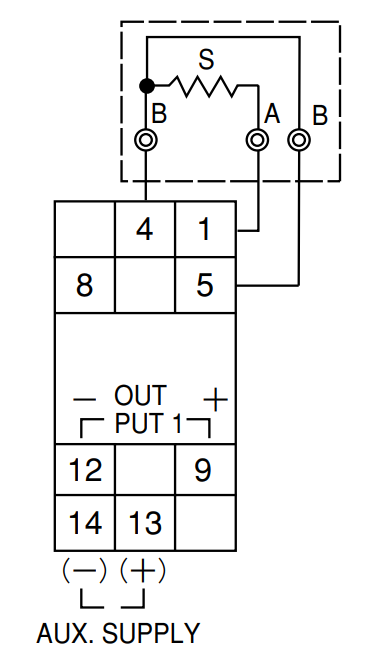

Wiring Diagram
