Manufacturer: Daiichi Electronics Co., Ltd.
Model: RHRC-12A-K2

Features

• Withstand voltage: AC 2000V between input, output, auxiliary power, and earth. Between output phases: AC 500V.
• Impulse withstand voltage: 5 kV, 1.2/50 µs, tested 3 times with both positive and negative polarities (between circuits and earth).
• Output surge protection: 2,000A ± 8/20 µs, allowing direct transmission to remote output.
• Provides constant voltage and constant current output.
• Equipped with output check terminals on the front panel.

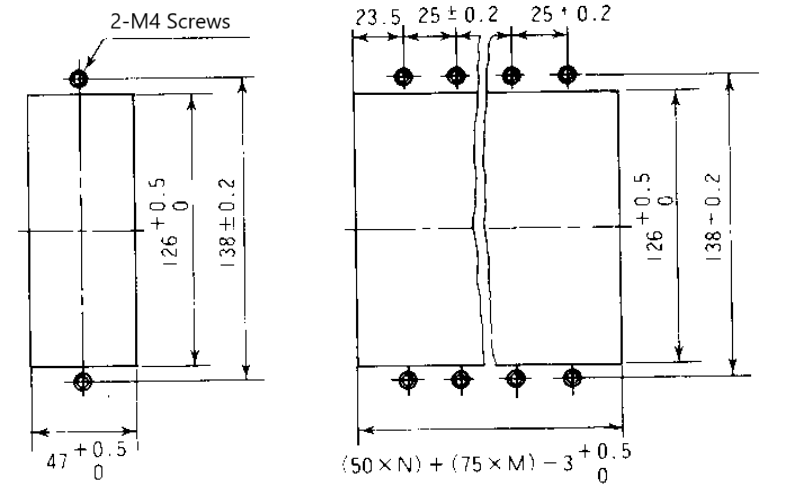

Panel Cutout Dimensions (Unit : mm)
