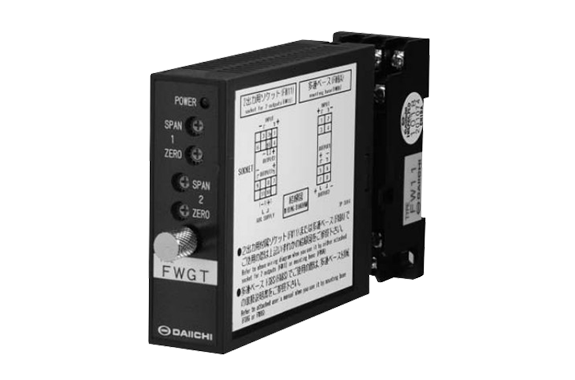

Manufacturer: Daiichi Electronics Co., Ltd.
Model: FWGT
Features
- Compact design with high dielectric strength.
- Dielectric strength between input, output, auxiliary power, and enclosure: AC 2,000 V (50/60 Hz) for 1 minute.
- Dielectric strength between output channels: AC 500 V (50/60 Hz) for 1 minute.
- As a constant voltage/current output type, no adjustment is needed when used within the specified load resistance range.
- Power-on status is indicated by an LED.
- Independent zero and span adjustments for output 1 and output 2 are possible (±2% adjustable).

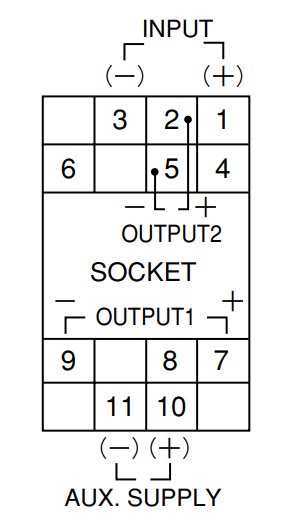

Wiring Diagram
