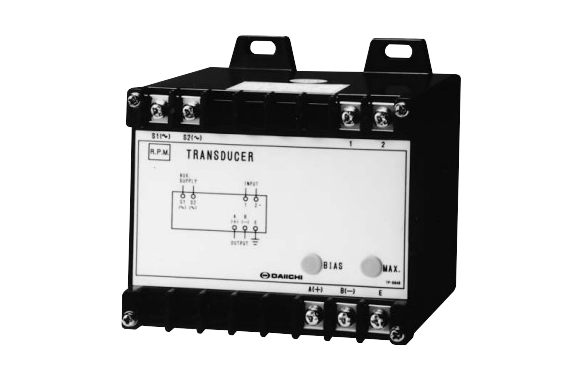

Daiichi Electronics Rotational Speed Transducer GTT2-83A / GVTT2-83A

Manufacturer: Daiichi Electronics Co., Ltd.
Model: GTT2-83A / GVTT2-83A
Features
- Satisfies withstand voltage of AC 2,000V (between input, output, auxiliary power supply, and earth).
- Guarantees impulse withstand voltage of 5kV 1.2/50 μs with positive and negative polarity, tested 3 times (between electrical circuits and earth).
- Equipped with output line surge protection (2,000A ±8/20 μs), allowing direct transmission to remote locations.
- Provides constant voltage and constant current output.

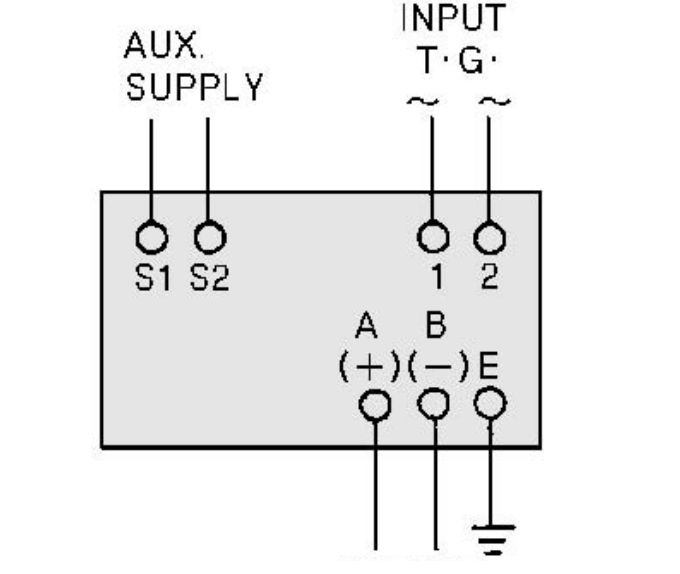

Wiring Diagram
Note: If the auxiliary power supply is DC, connect S1 to (+) and S2 to (−).
