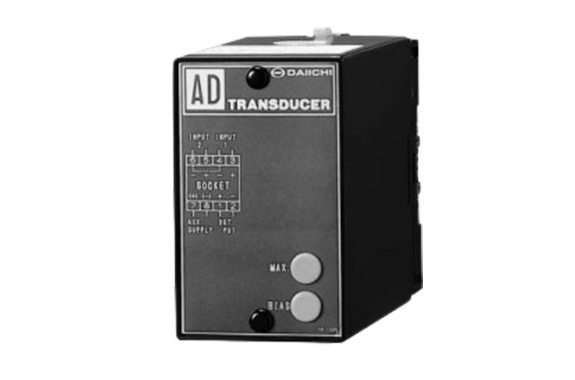

Manufacturer: Daiichi Electronics Co., Ltd.
Model: ADTP1-C7F5

Features

• Constant voltage and constant current output.
• Withstand voltage: 1,500 V AC (50/60 Hz) for 1 minute between input/output and auxiliary power, and between input and output.
  Also, 2,000 V AC (50/60 Hz) for 1 minute between the entire electrical circuit and the enclosure.
• The negative terminals of Input 1 and Input 2 are internally connected.
• Differential input/output is also available.
• Impulse withstand voltage: 5 kV, 1.2/50 μs, positive and negative polarity, guaranteed for three iterations (between electrical circuit and enclosure).

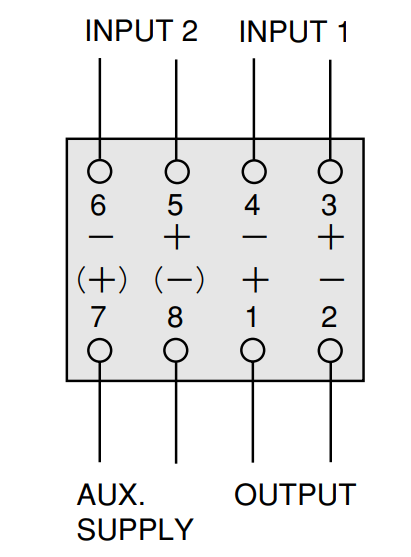

Wiring Diagram
