Manufacturer: Daiichi Electronics Co., Ltd.

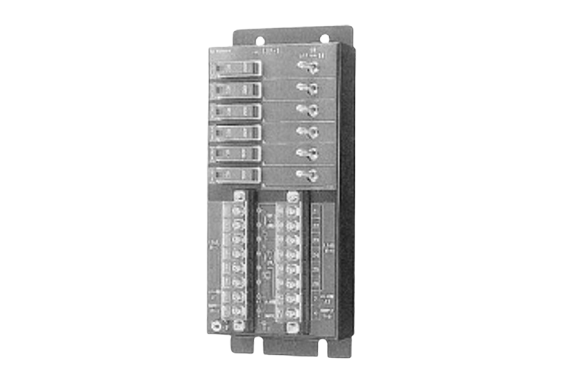

Model: SBP-6

Features

• It can branch into up to 6 circuits.
• Each circuit has a built-in power control switch. Each circuit also has a fuse with an alarm contact.
• The alarm contact turns ON when the fuse blows. The fuse is installed only on the U (–) side. The fuse alarm contact is rated at 1A (parallel contact).
• A blown fuse is indicated by a white flag in the fuse window. Please replace the fuse when this indication appears.
• Fuses can be replaced from outside by removing and inserting. Replacement fuses are also sold separately.

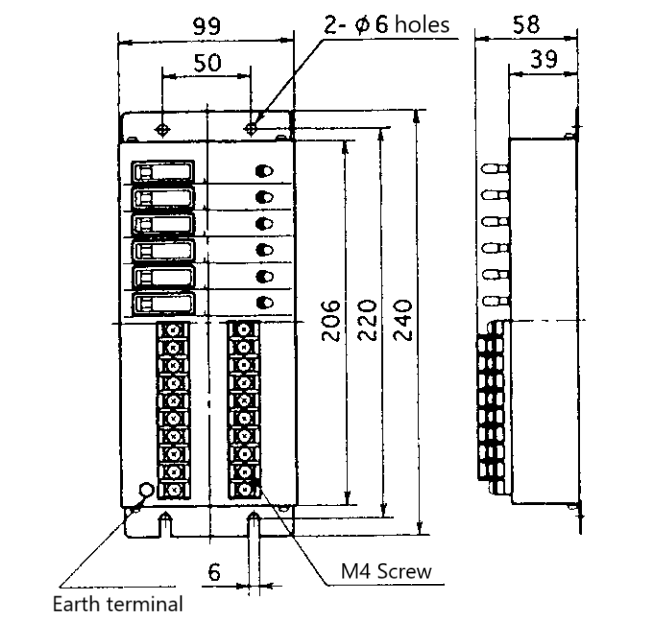

External Dimensions
