Manufacturer: Daiichi Electronics Co., Ltd.
Model: FSTC

Features

• Conversion accuracy: Within ±0.1%
• Time constant can be set from 1 to 63 ms (1 ms steps) using the front DIP switch.
  (Factory default: 1 ms)
• Power-on status can be confirmed with the LED. (LED color: Green)
• Even if an excessive input is applied, the output is limited to approximately 1.5 times the rated value to protect the output-side equipment.

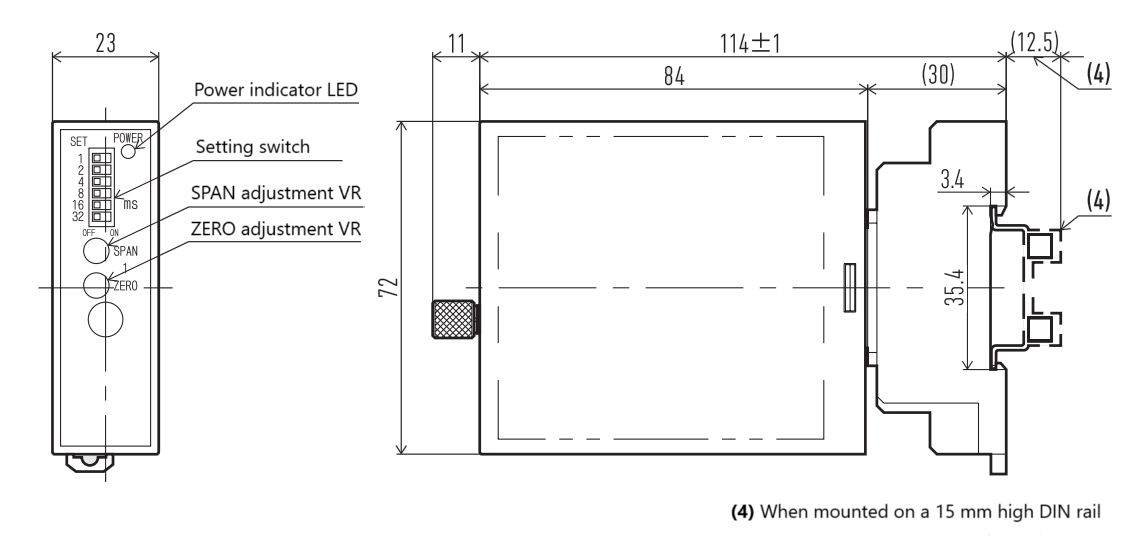

External Dimentions

• Main unit: approx. 130g
• Socket: approx. 30g
