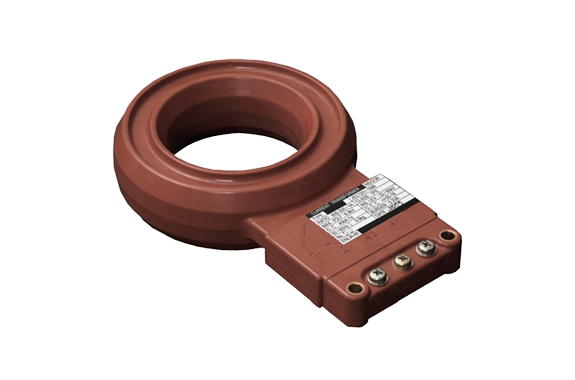

Daiichi Electronics Wide-Range Through-Type Current Transformer ENLIA-05

Manufacturer: Daiichi Electronics Co., Ltd.
Model: ENLIA-05
Features
- This device uses a wide-range CT that can be used for rated currents from 40 to 600 A.
- When changing the load capacity, there is no need to replace the CT or modify the panel.
- Instead, the protection relay (DMR-FW or DMR-SW) settings and CT wiring changes (tap positions) can be adjusted to accommodate the change.
- The wide-range CT offers excellent ratio accuracy and phase characteristics even at low input levels, and it satisfies 1PS class (JEC-1201) standards even when used at the minimum rated 40 A.

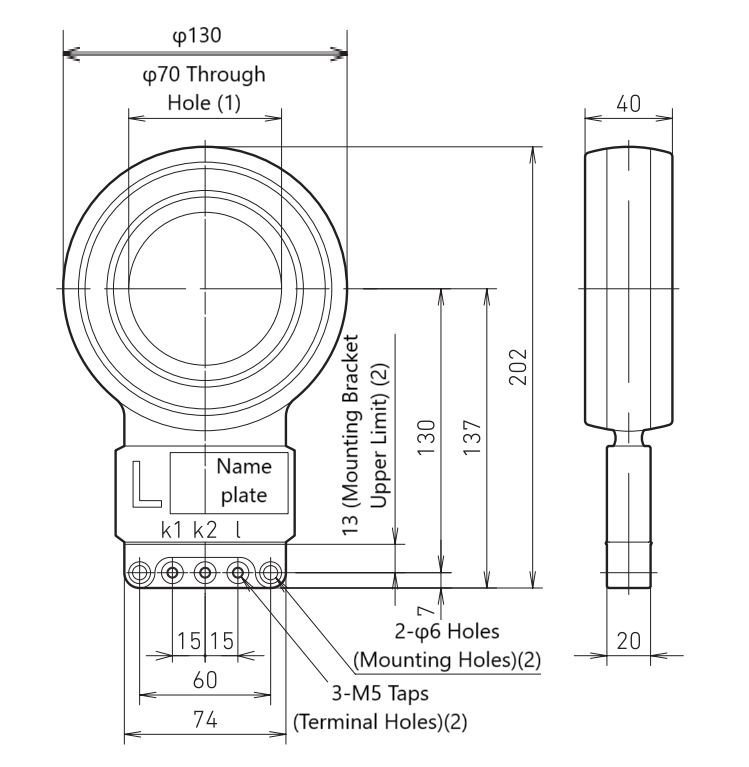

External Dimensions Drawing (Unit: mm)
