Daiko Keiki Seisakusho Co.

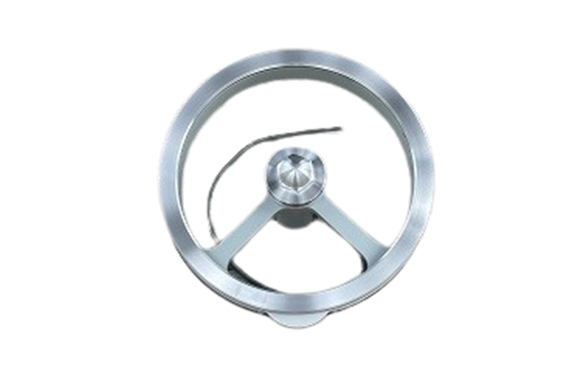

Daiko DSK Series Swivel Window Clear View Screen
Manufacturer: Daiko Keiki Seisakusho Co.,Ltd.
Model: DSK Series
Features
| Model | Outer Dimensions (mm) | Viewing Diameter (mm) | Cutting Dimension (mm) | Window Thickness (mm) | Weight (kg) | Water Acceptance (H) |
| DSK-250B | 300 | 250 | 274 | 6-8 | 5.3 | 11 |
| DSK-300B | 350 | 300 | 324 | 6-8 | 6.5 | 11 |
DSK-250B
Note
- Please cut the window glass to 274 mm.
- If the new product is not properly installed, remove the rubber packing. If it is installed as is, it may cause water leakage. Also, since the surrounding area is black-painted, please repaint it after installation. If the surrounding area is not repainted, the rubber packing may come off.
- This product is not suitable for vessels over 25 tons.
DSK-300B
Note
- Please cut the window glass to 324 mm.
- If the new product does not fit properly, remove the rubber packing. If it is installed as is, it may cause water leakage. Also, since the surrounding area is black-painted, please repaint it after installation. If the surrounding area is not repainted, it may cause motor malfunction.
In particular, for used products, corrosion may occur in the frame pockets, so please be careful.
Specifications
| SPECIFICATION | ||
| 1 | SUPPLY SOURCE | DC 24V |
| 2 | MOTOR OUTPUT | 80 W |
| 3 | SCREEN REVOLUTION | 1900 ± 200 RPM |
| 4 | CABLE CORD TYPE | |
| 5 | CLEAR SIZE | 250φ |
| 6 | Weight | abt. 5.3kg |
| SPECIFICATION | ||
| 1 | SUPPLY SOURCE | DC24V |
| 2 | MOTOR OUTPUT | 80 W |
| 3 | SCREEN REVOLUTION | 1900 ± 200 RPM |
| 4 | CABLE CORD TYPE | |
| 5 | CLEAR SIZE | 300φ |
| 6 | Weight | abt. 5.9kg |

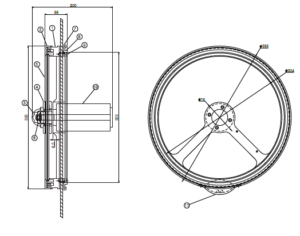

Dimensions (mm)
