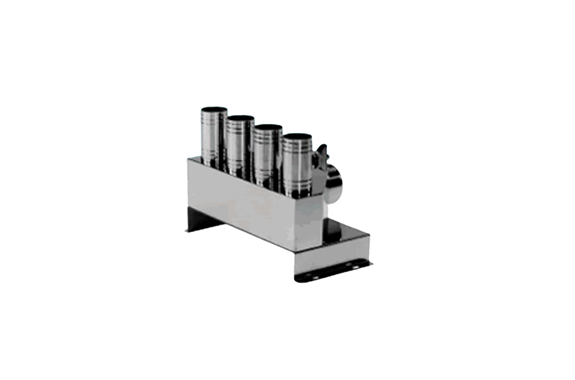

Daikoken Heat BP series Multi-branch pipe vertical type

Manufacturer: Daikoken Heat Co., Ltd.
Model: BP Series.

Features

Distributes air from a blower in the vertical direction.
Damper is installed on both the air inlet and outlet sides to control airflow.
The damper on the outlet side ensures smooth airflow regulation.
If more than three branches are added on the outlet side, internal flow distribution is adjusted.
Made from SUS304 material.
Can be used as a collection pipe for air branches or in blower processing systems.
Fine-tuning with dampers may not be fully achieved.
Additional dampers may cause slight air leakage in specific areas.

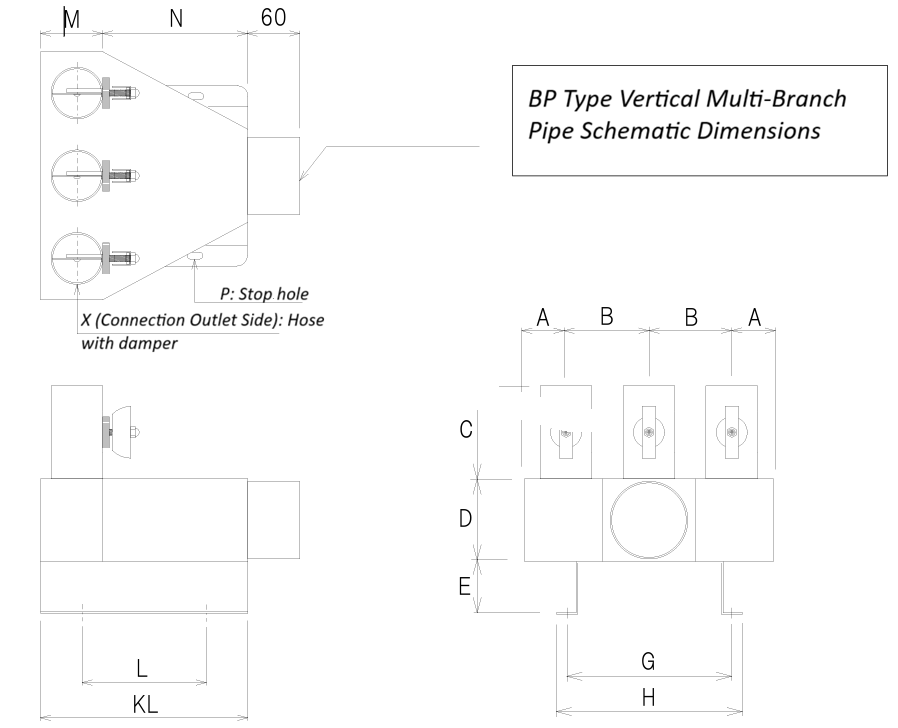

X (Number of Branches)	E	G	H	L	KL	N	N (Stop Hole)
φ50 x 2-3 branches	50	100	120	120	200	140	4-φ7L15
φ65 x 2-3 branches	50	100	120	135	215	140	4-φ7L15
φ75 x 2 branches	50	100	120	140	220	140	4-φ7L15
φ50 x 4-5 branches	50	200	220	120	200	140	4-φ7L15
φ65 x 4branches	50	200	220	135	215	140	4-φ7L15
φ75 x 3-4 branches	50	200	220	140	220	140	4-φ7L15
φ100 x 2-3 branches	50	200	220	150	250	140	4-φ7L15
φ125 x 2 branches	50	200	220	170	270	140	4-φ7L15
φ50 x 6-8 branches	60	330	360	200	300	240	4-φ9L18
φ65 x 6-8 branches	60	330	360	215	315	240	4-φ9L18
φ75 x 5-6 branches	60	330	360	220	320	240	4-φ9L18
φ100 x 4 branches	60	330	360	250	350	240	4-φ9L18
φ125 x 3-4 branches	60	330	360	250	370	240	4-φ9L18
φ50 x 9-10 branches	80	440	480	250	390	330	4-φ9L18
φ65 x 8-10 branches	80	440	480	265	405	330	4-φ9L18
φ75 x 7-9 branches	80	440	480	270	410	330	4-φ9L18
φ100 x 5-7 branches	80	440	480	300	440	330	4-φ9L18
φ125 x 5 branches	80	440	480	320	460	330	4-φ9L18
φ75 x 10 branches	100	650	700	360	520	440	4-φ11L20
φ100 x 8-10 branches	100	650	700	370	550	440	4-φ11L20
φ125 x 6-8 branches	100	650	700	370	570	440	4-φ11L20
