Daikoken Heat Co.

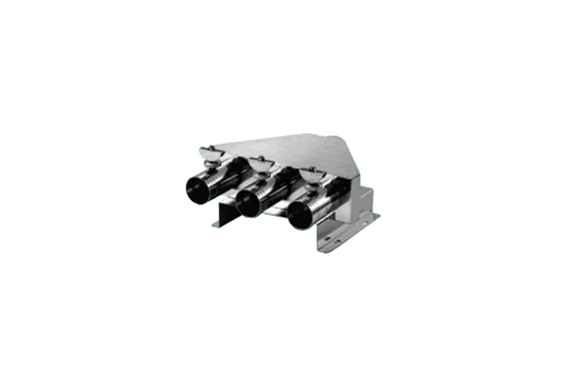

Daikoken Heat BR Series Multi-branch Pipe Horizontal Type
Manufacturer: Daikoken Heat Co., Ltd.
Model: BR Series.
Features
- Distributes air from blowers in various directions using a multi-branch pipe.
- Inlet and outlet equipped with dampers to adjust flow rate.
- Dampers can be installed on the air inlet side to control airflow at the outlet.
- Features a three-branch pipe to regulate airflow distribution.
- Made from SUS304.
- Suitable for both horizontal and vertical installations.
- Easy integration into existing systems.

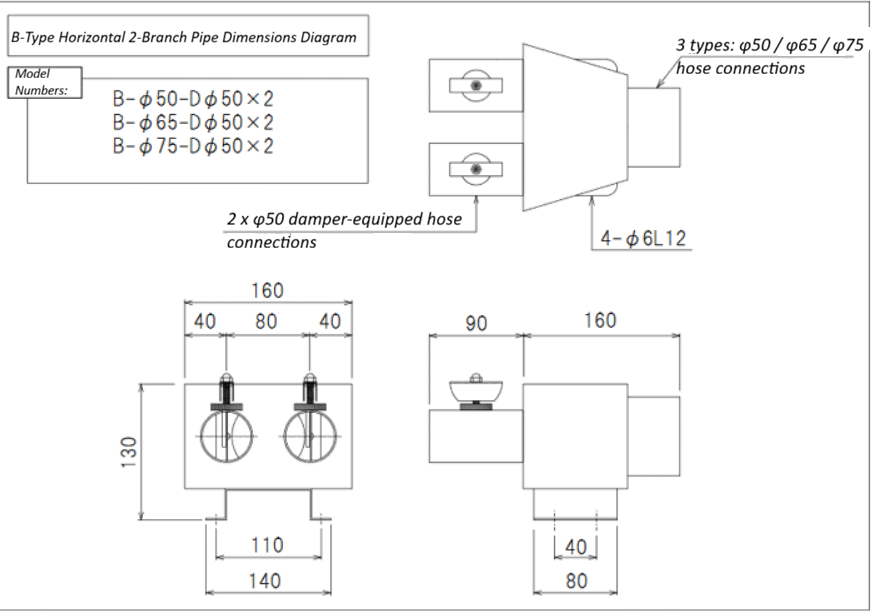

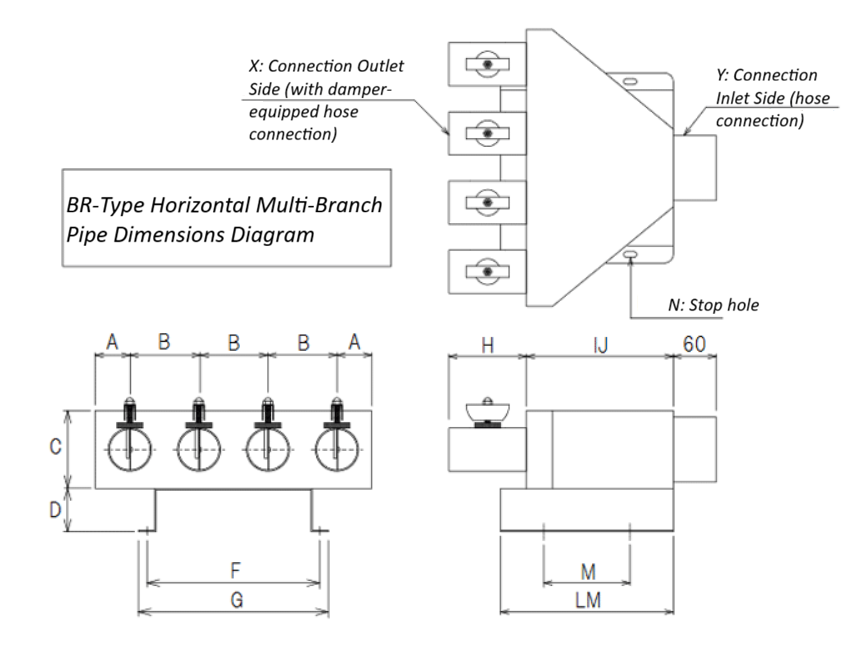

Specifications
| X (Number of Branches) | D | F | G | M | LM | IJ | N (Stop Hole) |
|---|---|---|---|---|---|---|---|
| φ50 x 2-3 branches | 50 | 100 | 120 | 100 | 200 | 170 | 4-φ7L15 |
| φ65 x 2-3 branches | 50 | 100 | 120 | 100 | 200 | 170 | 4-φ7L15 |
| φ75 x 2 branches | 50 | 100 | 120 | 100 | 200 | 170 | 4-φ7L15 |
| φ50 x 4-5 branches | 50 | 200 | 220 | 100 | 200 | 170 | 4-φ7L15 |
| φ65 x 4branches | 50 | 200 | 220 | 100 | 200 | 170 | 4-φ7L15 |
| φ75 x 3-4 branches | 50 | 200 | 220 | 100 | 200 | 170 | 4-φ7L15 |
| φ100 x 2-3 branches | 50 | 200 | 220 | 100 | 200 | 170 | 4-φ7L15 |
| φ125 x 2 branches | 50 | 200 | 220 | 100 | 200 | 170 | 4-φ7L15 |
| φ50 x 6-8 branches | 60 | 330 | 360 | 160 | 320 | 280 | 4-φ9L18 |
| φ65 x 6-8 branches | 60 | 330 | 360 | 160 | 320 | 280 | 4-φ9L18 |
| φ75 x 5-6 branches | 60 | 330 | 360 | 160 | 320 | 280 | 4-φ9L18 |
| φ100 x 4 branches | 60 | 330 | 360 | 160 | 320 | 280 | 4-φ9L18 |
| φ125 x 3-4 branches | 60 | 330 | 360 | 160 | 320 | 280 | 4-φ9L18 |
| φ50 x 9-10 branches | 80 | 440 | 480 | 240 | 400 | 380 | 4-φ9L18 |
| φ65 x 8-10 branches | 80 | 440 | 480 | 240 | 440 | 380 | 4-φ9L18 |
| φ75 x 7-9 branches | 80 | 440 | 480 | 240 | 440 | 380 | 4-φ9L18 |
| φ100 x 5-7 branches | 80 | 440 | 480 | 240 | 440 | 380 | 4-φ9L18 |
| φ125 x 5 branches | 80 | 440 | 480 | 240 | 440 | 380 | 4-φ9L18 |
| φ75 x 10 branches | 100 | 650 | 700 | 280 | 560 | 500 | 4-φ11L20 |
| φ100 x 8-10 branches | 100 | 650 | 700 | 280 | 560 | 500 | 4-φ11L20 |
| φ125 x 6-8 branches | 100 | 650 | 700 | 280 | 560 | 500 | 4-φ11L20 |
| Connection Inlet Side (X) | A | B | H |
|---|---|---|---|
| φ50 | 40 | 80 | 90 |
| φ65 | 45 | 90 | 90 |
| φ75 | 50 | 100 | 90 |
| φ100 | 70 | 140 | 220 |
| φ125 | 85 | 170 | 220 |
| Connection Inlet Side (Y) | C |
|---|---|
| φ50 | 80 |
| φ65 | 80 |
| φ75 | 90 |
| φ100 | 120 |
| φ125 | 150 |
| φ150 | 180 |
| φ175 | 210 |
| φ200 | 240 |
