Daikoken Heat DL series Dry draining air blowing for high pressure blowers
Manufacturer: Daikoken Heat Co., Ltd.
Model: DL series
Features
- The DL series is a slit-type nozzle designed specifically for high-pressure blowers.
- It ensures stable linear air from low to high wind speeds.
- Ideal for air blowing treatments such as:
- Drying
- Draining on the line
- The specifications of the injection slit section are the same as the CL and CLW series for high-pressure blowers.
- The DL series has an air inlet attached to the end.
Specifications
| Nozzle Type | Slit length | Weight (reference) | Slit width | Blowing port |
|---|---|---|---|---|
| DL-500 | 500mm | 3200g | 0.8mm | φ50 PT(R)1 1/2″ (Male Thread)PS (Rp)1 1/2″(Internal Thread)1 1/2″ (Internal Thread) |

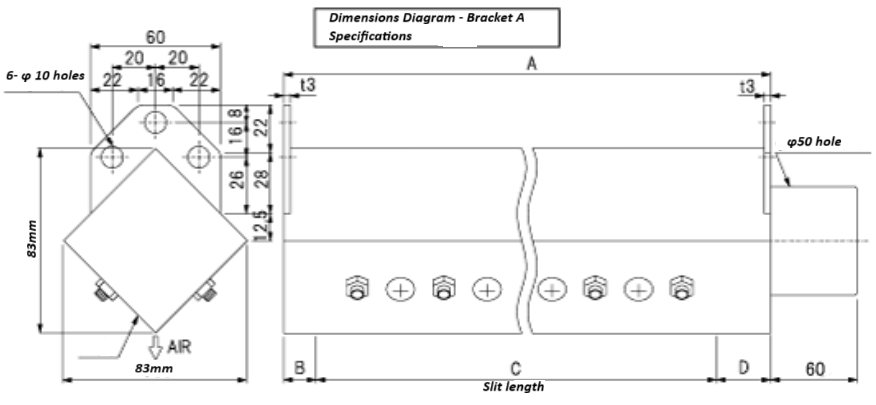

| A | B | C | D | |
|---|---|---|---|---|
| DL-500 | 540 | 15 | 500 | 25 |
| DL-600 | 640 | 15 | 600 | 25 |
| DL-700 | 740 | 15 | 700 | 25 |
