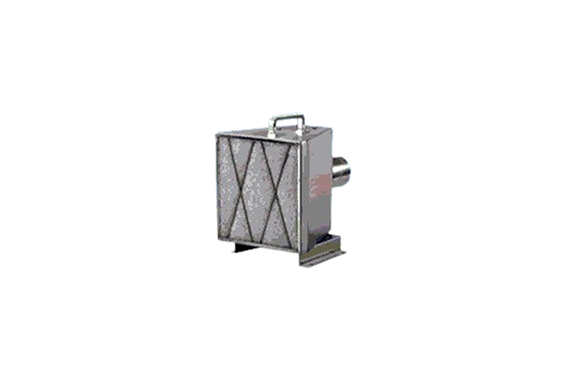

Daikoken Heat FD Series Air Filter Blower Inlet Connection
Manufacturer: Daikoken Heat Co., Ltd.
Model: FD Series
Features
- Pre-filter unit type FD (suction maximum temperature 40°C)
- This filter unit is mainly used by connecting to the suction side of the blower (blower).
- By expanding the suction area, the suction flow speed can be reduced and the suction noise of the blower can be reduced.
- The connection is standard with a hose mouth. Depending on the application, specifications with dampers and flanges can also be manufactured.
- If the connection is made of a damper specification, it is possible to easily adjust the suction air volume.
- Set filter material→ Polyester/Polykral (washable and reusable) 2 spare filters included Set filter
- performance→ 30~40μm dust
- Casing material →SUS304

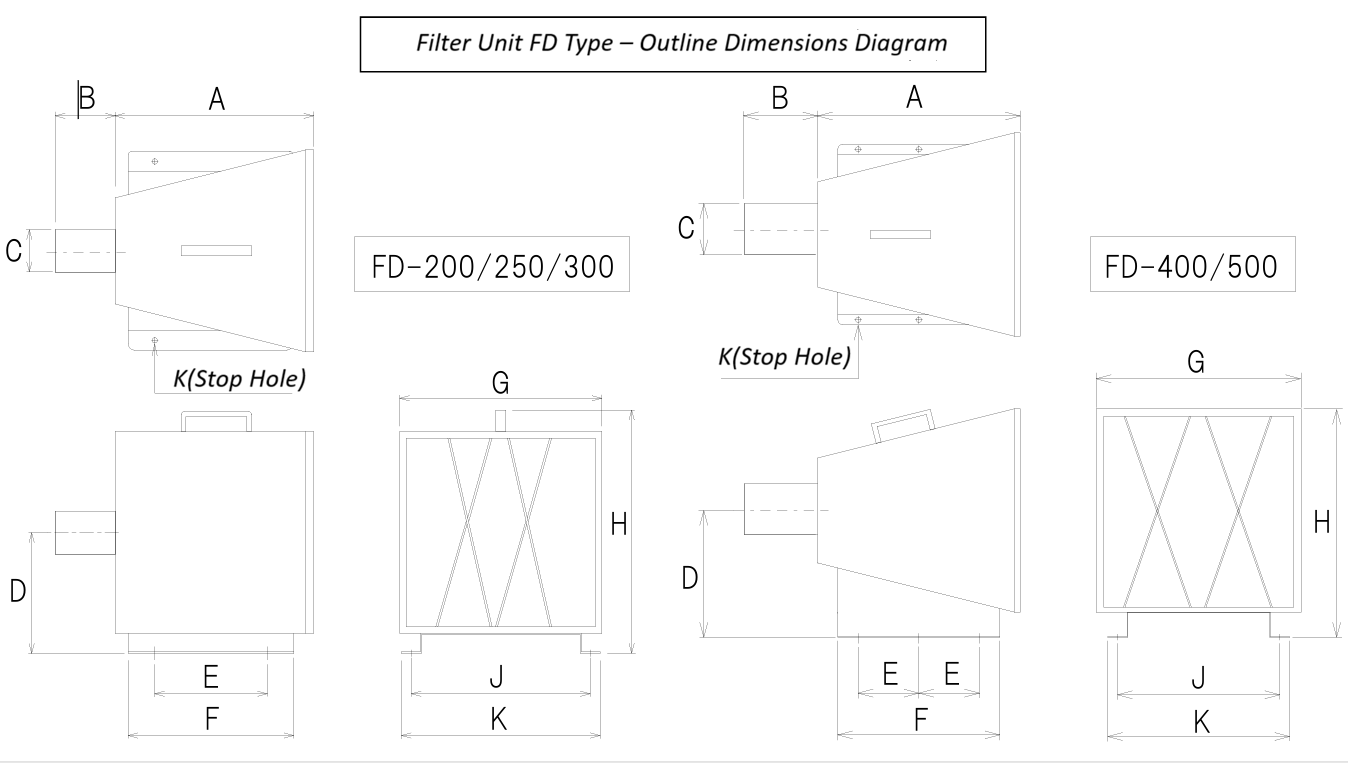

| Model | A | D | E | F | G | H | J | K | L (Stop Hole) | Treated airflow |
|---|---|---|---|---|---|---|---|---|---|---|
| FD-200 | 200 | 132 | 110 | 150 | 205 | 267 | 180 | 200 | 4-Φ6 | 2.4m3/min. |
| FD-250 | 250 | 157 | 140 | 200 | 255 | 317 | 220 | 250 | 4-Φ8.5 | 3.8m3/min. |
| FD-300 | 300 | 182 | 170 | 250 | 305 | 367 | 270 | 300 | 4-Φ8.5 | 5.4m3/min. |
| FD-400 | 400 | 252 | 120 | 320 | 405 | 455 | 320 | 360 | 6-Φ11 | 9.6m3/min. |
| FD-500 | 500 | 302 | 170 | 420 | 505 | 555 | 440 | 480 | 6-Φ11 | 15.0m3/min. |
Standard Specification (Hose Spout)
| Pipe Diameter (C) | Φ50 | Φ65 | Φ75 | Φ100 | Φ125 | Φ150 | Φ175 |
|---|---|---|---|---|---|---|---|
| B | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
When the connection is made to a damper specification
| Pipe Diameter (C) | Φ50 | Φ65 | Φ75 | Φ100 | Φ125 | Φ150 | Φ175 |
|---|---|---|---|---|---|---|---|
| B | 90 | 90 | 90 | 220 | 220 | 220 | 220 |
