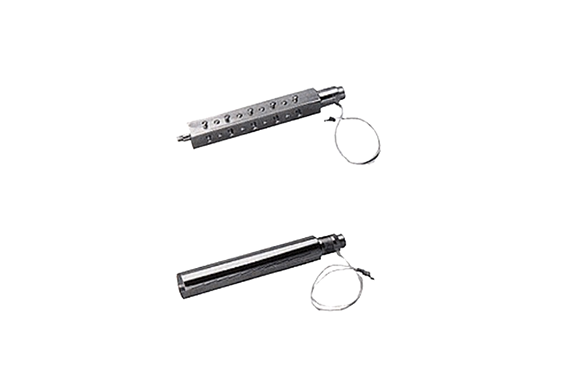

Daikoken Heat HAX Series Hot Air Nozzle
Manufacturer: Daikoken Heat Co., Ltd.
Model: HAX Series
Features
- This series is available in a standard type with a maximum hot-air temperature of 200°C, and an R type with a maximum of 500°C.
- Because the heater is a cartridge type, even if you want to change the heater capacity later, you can easily replace it with a one-touch swap.
- The main body material is SUS304, and the heating element uses nichrome wire or Kanthal wire. Thanks to the special internal design, it provides a high heat-exchange efficiency and offers excellent durability even when used at high temperatures.
Specifications
Standard type (MAX. 200°C)
| Model | Slit length (mm) | Slit width (mm) | Heater capacity (kW) | Power supply |
|---|---|---|---|---|
| HAX-200 | 200 | 0.2 | 0.8 | Single-phase 100 V |
| HAX-250 | 250 | 0.2 | 1.0 | Single-phase 100 V |
| HAX-300 | 300 | 0.2 | 1.0 | Single-phase 100 V |
| HAX-350 | 350 | 0.2 | 1.6 | Single-phase 200 V |
| HAX-400 | 400 | 0.2 | 2.0 | Single-phase 200 V |
High-temperature R type (MAX. 500°C)
| Model | Slit length (mm) | Slit width (mm) | Heater capacity (kW) | Power supply |
|---|---|---|---|---|
| HAX-200R | 201 | 0.15 | 0.8 | Single-phase 100 V |
| HAX-260R | 261 | 0.15 | 1.0 | Single-phase 100 V |
| HAX-300R | 301 | 0.15 | 1.0 | Single-phase 100 V |
| HAX-360R | 361 | 0.15 | 1.6 | Single-phase 200 V |
| HAX-400R | 401 | 0.15 | 2.0 | Single-phase 200 V |
