Manufacturer: Daikoken Heat Co., Ltd.
Model: FN Series

Features

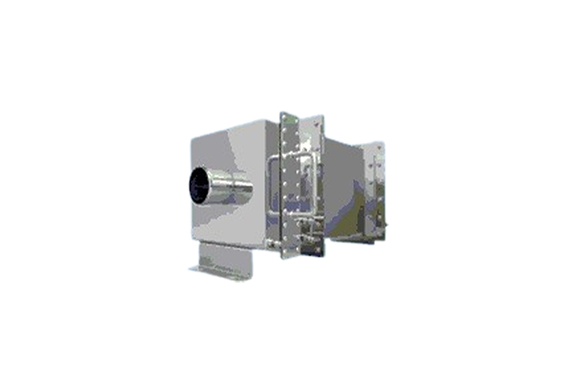

• This HEPA filter unit is used by connecting to the middle of the pipe.
  A pre-filter and a HEPA filter are set inside the unit (at the rated treatment airflow), and the powder collection efficiency of 0.3 μm is 99.97%.
  In addition, the product has a unique rectification structure to evenly distribute air to the containment filter.
  Setting pre-filter
  Material→ Polyester/Polykral (washable and reusable, operating temperature up to 80°C) 2 spare filters included
  Performance→ 30~40μm dust target (*Note 1)
  Setting Hepa filter
  Material→ glass paper ( Operating temperature up to 60°C)
  Performance →0.3~0.4μm dust target (*2)
  Casing material→SUS304
  Body pressure →about 30Kpa (*3)
