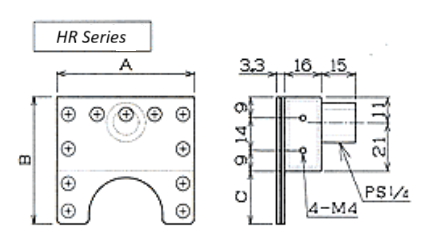

Daikoken Heat HR Series Half-ring nozzle
Manufacturer: Daikoken Heat Co., Ltd.
Model: HR Series
Features
- The HR Series is a nozzle specifically for high-speed air (compressors, etc.).
- This nozzle can be connected to a heat generator and used in high-temperature environments.
- This series allows for the production of custom products tailored to specific workpiece shapes.
Specifications
| Nozzle Type | Injection Half-Diameter | Slit Width | Blowing Port |
|---|---|---|---|
| HR-2 | R2.5 ~ R8 | 0.3mm | PS1/4 (Inner) |
| HR-3 | R8.5 ~ R12 | 0.3mm | PS1/4 (Inner) |
| HR-4 | R12.5 ~ R18 | 0.3mm | PS1/4 (Inner) |
| HR-5 | R18.5 ~ R25 | 0.3mm | PS1/4 (Inner) |
