Daikoken Heat Co.

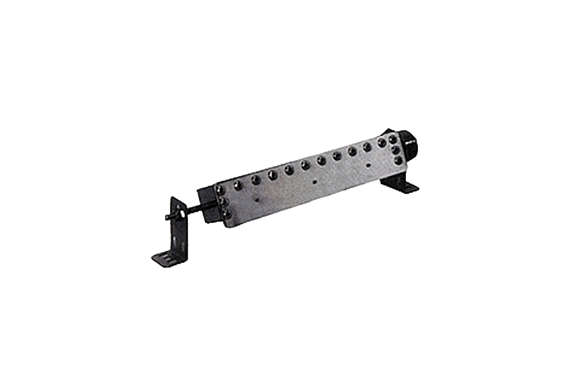

Daikoken Heat LDN to LDLX series High-precision lip-type
Manufacturer: Daikoken Heat Co., Ltd.
Model: LDN to LDLX series
- This is a nozzle with a lip attached to one side of the square flow distribution.
- It can be used in other gases and liquids with high viscosity, and the shape can be stabilized.
Specifications

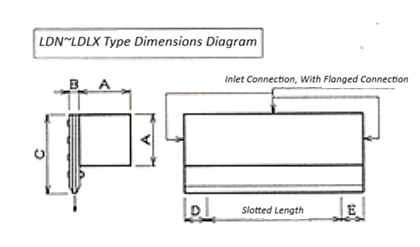

| Nozzle Model | Slotted Length | Slotted Width | Inlet Connection |
|---|---|---|---|
| LDN-100 | 100 mm | 0.3 mm | PT1 (External) Multiple Installations Allowed |
| LDN-150 | 150 mm | 0.6 mm | PT1 (External) Multiple Installations Allowed |
| LDN-200 | 200 mm | 0.8 mm | PT1 (External) Multiple Installations Allowed |
| LDM-250 | 250 mm | 0.6 mm | PT1 ¼ (External) Multiple Installations Allowed |
| LDM-300 | 300 mm | 0.6 mm | PT1 ¼ (External) Multiple Installations Allowed |
| LDM-350 | 350 mm | 0.6 mm | PT1 ¼ (External) Multiple Installations Allowed |
| LDM-400 | 400 mm | 0.6 mm | PT1 ¼ (External) Multiple Installations Allowed |
| LDM-500 | 500 mm | 0.6 mm | PT1 ¼ (External) Multiple Installations Allowed |
| LDL-500 | 500 mm | 0.6 mm | PS1 ½ (Internal), φ50 Hose Connection, Multiple Installations Allowed |
| LDL-600 | 600 mm | 0.8 mm | PS1 ½ (Internal), φ50 Hose Connection, Multiple Installations Allowed |
| LDL-700 | 700 mm | 1 mm | PS1 ½ (Internal), φ50 Hose Connection, Multiple Installations Allowed |
| LDL-800 | 800 mm | 1 mm | PS1 ½ (Internal), φ50 Hose Connection, Multiple Installations Allowed |
| LDLX-800 | 800 mm | 0.6 mm | PT2 (External), PS2, φ65 Hose Connection, Multiple Installations Allowed |
| LDLX-900 | 900 mm | 0.6 mm | PT2 (External), PS2, φ65 Hose Connection, Multiple Installations Allowed |
| LDLX-1000 | 1000 mm | 0.8 mm | PT2 (External), PS2, φ65 Hose Connection, Multiple Installations Allowed |
| LDLX-1100 | 1100 mm | 0.8 mm | PT2 (External), PS2, φ65 Hose Connection, Multiple Installations Allowed |
| LDLX-1200 | 1200 mm | 1 mm | PT2 (External), PS2, φ65 Hose Connection, Multiple Installations Allowed |
| LDLX-1300 | 1300 mm | 1 mm | PT2 (External), PS2, φ65 Hose Connection, Multiple Installations Allowed |
