Model Types
Standard Specification (Pressure resistance: 0.5 MPa)
- LH-4 (3 kW)
- LH-5 (4 kW)
- LH-6 (5 kW)
- LH-7 (6 kW)
- LH-8 (7 kW)
- LH-9 (8 kW)
- LH-10 (9 kW)
- LH-11 (10 kW)
- LH-12 (12 kW)
- LH-13 (15 kW)
- LH-14 (20 kW)
- LH-15 (25 kW)
High-Pressure Specification (Pressure resistance: 1.0 MPa)
- LH-4-1MPa (3 kW)
- LH-5-1MPa (4 kW)
- LH-6-1MPa (5 kW)
- LH-7-1MPa (6 kW)
- LH-8-1MPa (7 kW)
- LH-9-1MPa (8 kW)
- LH-10-1MPa (9 kW)
- LH-11-1MPa (10 kW)
- LH-12-1MPa (12 kW)
- LH-13-1MPa (15 kW)
- LH-14-1MPa (20 kW)
- LH-15-1MPa (25 kW)
Power Supply / Voltage:
3-phase, 200 V
Maximum Inlet Fluid Temperature:
40°C
Operating Temperature:
- Maximum: 500°C
- Normal: 300°C
Main Body Material:
SUS304
Heater Element:
SUS321

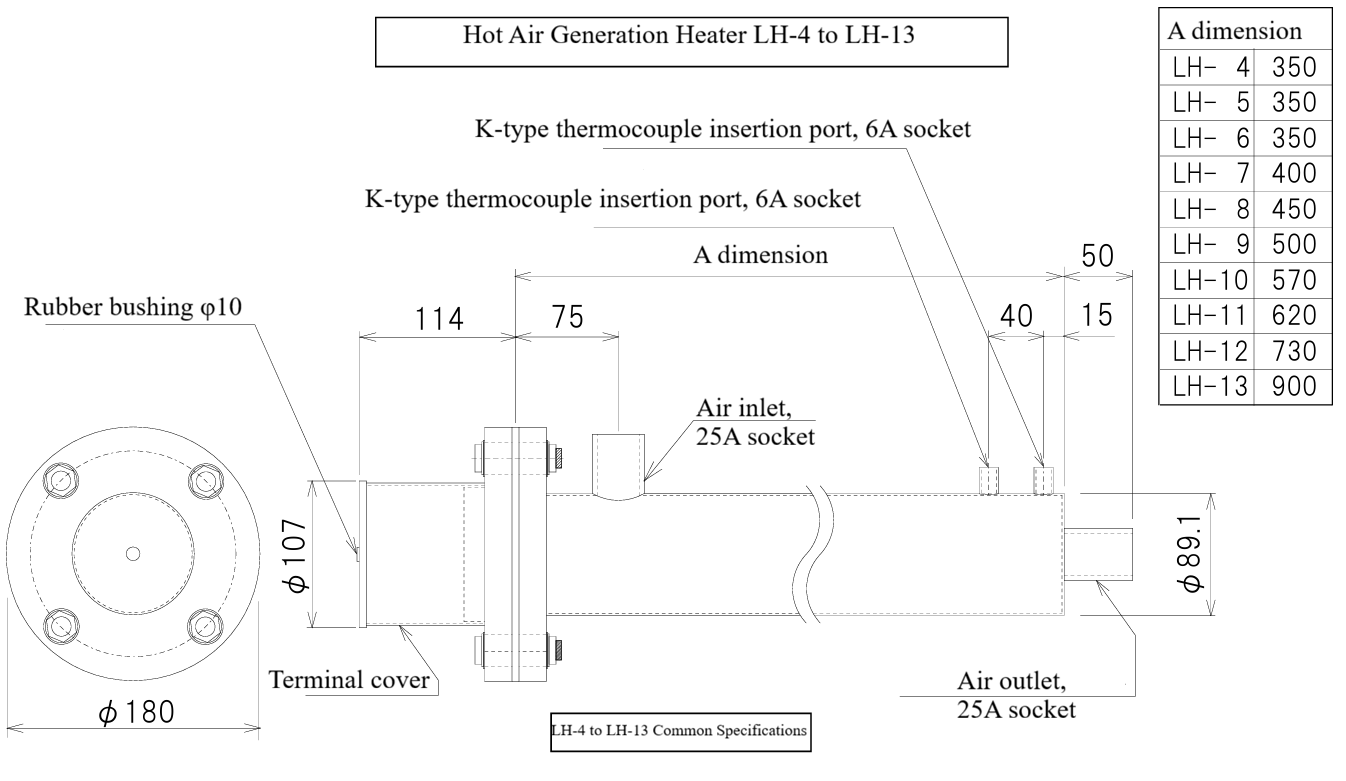

Specifications
