Daikoken Heat MX series Dry draining air blowing for slit type air nozzle compressors Compact
Manufacturer: Daikoken Heat Co., Ltd.
Model: MX series
Features
- This is the nozzle that produces the strongest flat air in the Air Pron series.
- It uses a double slit type, where air is sprayed at different angles from the two slits.
- One nozzle can be used for two treatments.
- The ability to drain water is close to perfect.
Specifications
| Nozzle format | Slit length | Weight (reference) | Slit width | Blowing port |
|---|---|---|---|---|
| MX-10 | 10mm | 75g | 0.15 mm × 2 double slit type | PS (Rp) 1/4″ (Internal Thread) |
| MX-20 | 20mm | 80ｇ | ||
| MX-30 | 30mm | 95ｇ | ||
| MX-40 | 40mm | 105ｇ | ||
| MX-50 | 50mm | 115ｇ |

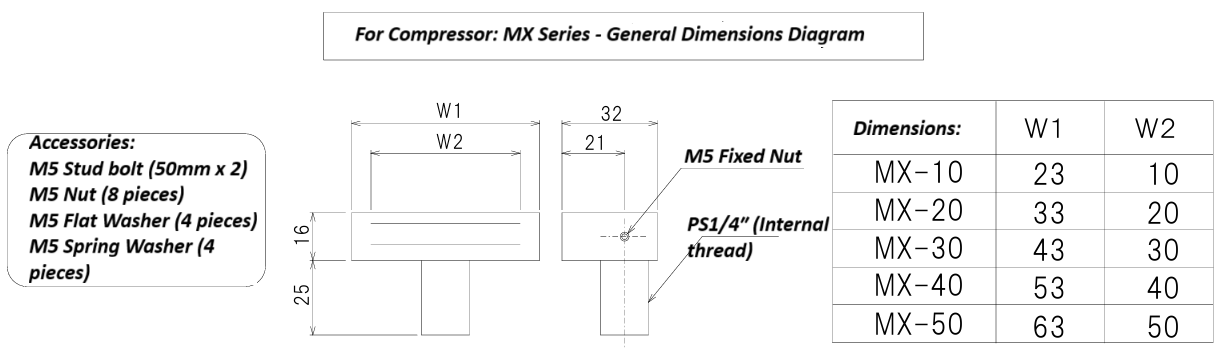

| Nozzle format | W1 | W2 |
|---|---|---|
| MX-10 | 23 | 10 |
| MX-20 | 33 | 20 |
| MX-30 | 43 | 30 |
| MX-40 | 53 | 40 |
| MX-50 | 63 | 50 |
