Daikoken Heat RX Series Circumferential Inner Injection Type Ring Nozzle
Manufacturer: Daikoken Heat Co., Ltd.
Model: RX Series
Features
- The RX and RN series are mainly used for high-speed cutting of wire, tubes, threads, and dry lines.
- They are designed for nozzles with diameters ranging from 4mm to 1300mm, and various products for dry cutting are available.
Specifications
| Nozzle Type | Injection Loop Diameter | Slit Width | Blowing Port |
|---|---|---|---|
| RX-2 | 4mm × φ20 | 0.3mm | PS1/4 (Inner Thread) |
| RX-3 | φ22 × φ36 | 0.3mm | PS1/4 (Inner Thread) |
| RN-1 | φ30 × φ36 | 1mm | φ50 |
| RN-2 | φ38 × φ50 | 1mm | φ50 |
| RN-3 | φ52 × φ90 | 1mm | φ65 |
| RN-4 | φ92 × φ130 | 1mm | φ65 |

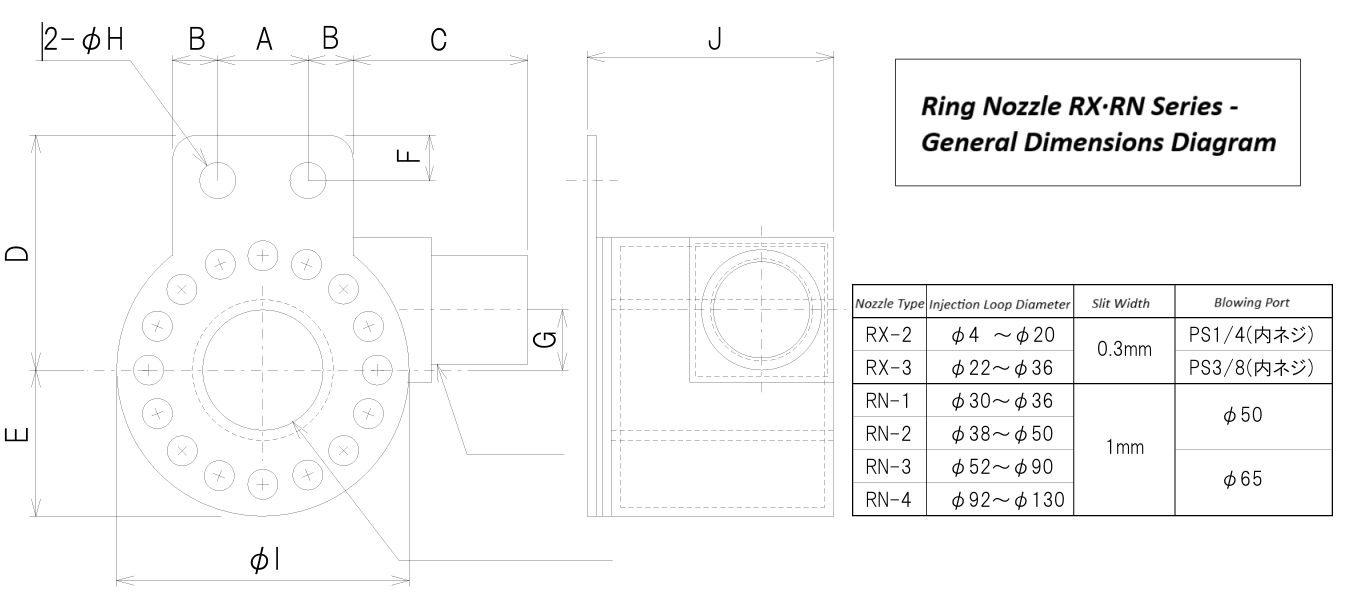

| Model | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|
| RX-2 | 20 | 10 | 30 | 50 | 30.25 | 10 | 15 | φ7 | φ60.5 | 38.3 |
| RX-3 | 20 | 10 | 30 | 60 | 38.2 | 10 | 20 | φ7 | φ76.3 | 38.3 |
| RN-1 | 20 | 10 | 68 | 55 | 38.2 | 10 | 20 | φ7 | φ76.3 | 68 |
| RN-2 | 30 | 15 | 78 | 80 | 50.8 | 15 | 0 | φ8.5 | φ101.6 | 94 |
| RN-3 | 40 | 20 | 115 | 120 | 82.6 | 20 | 0 | φ11 | φ165.2 | 124 |
| RN-4 | 50 | 25 | 130 | 160 | 108.2 | 25 | 0 | φ13 | φ216.3 | 154 |
