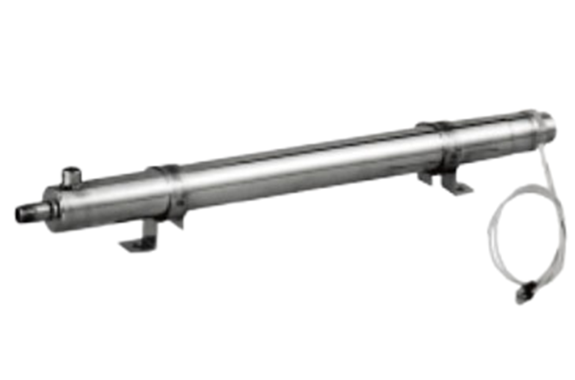

Daikoken Heat S-1 Series Hot Air Generation Heater
Manufacturer: Daikoken Heat Co., Ltd.
Model: S-1 Series
Features
- By connecting to high-pressure air such as from a compressor, stable hot air can be obtained from room temperature up to 800°C.
Model Lineup
- S-1-800
- S-1-1000
- S-1-1600
- S-1-2000
Construction / Materials
- Casing: SUS304
- Internal structure: Heat-resistant Ni-Cr wire, ceramic
- Allowable operating pressure: Max. 0.2 MPa (2 kg/cm²)
Specifications
| Item | S-1-800 | S-1-1000 | S-1-1600 | S-1-2000 |
|---|---|---|---|---|
| Heater capacity | 800 W | 1 kW | 1.6 kW | 2 kW |
| Power supply | Single-phase 100 V | Single-phase 100 V | Single-phase 200 V | Single-phase 200 V |
| Continuous operating temperature range | Normal to 800°C (max inlet air temperature 40°C) | |||
| Minimum required air flow (NL/min) | 45 | 57 | 90 | 114 |
| Air inlet / outlet port | Inlet: PS 1/4″ (female) / Outlet: PT 1/4″ (male) | |||
| Temperature sensor port | PS 1/8″ (female) | |||
| Reference weight (g) | 450 | 570 | 600 | 760 |
| Recommended temperature controller | TCN5-Z |
