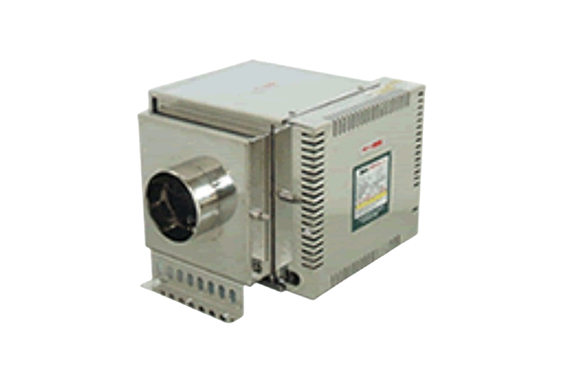

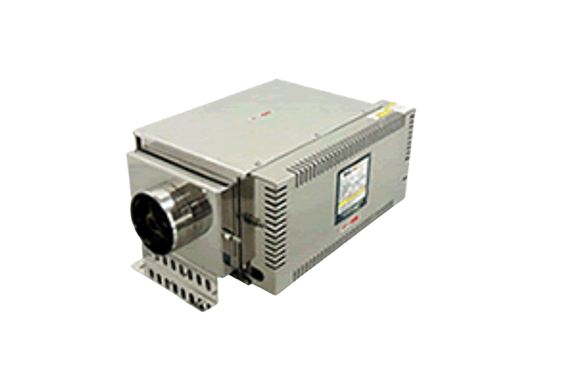

Daikoken Heat SH Series Horizontal Hot Air Generation Heater
Manufacturer: Daikoken Heat Co., Ltd.
Model: SH Series
Features
- This is a multi-purpose electric hot air generation heater designed to achieve a high heat exchange rate.
- Although it is a stainless steel heater, we have achieved a low price through mass production.
Since there are many types, they can be freely selected, connected, and have a long service life and continuous operation.
Specifications
| Power supply | Material : Body: Casing | Material : Heating Body Heating Gas Section | Double insulation structure | Overheating protection |
|---|---|---|---|---|
| 200V3 Phase | SUS304 | SUS321 | Standard Specifications | Standard Specifications |
| Model | Heater capacity | Minimum airflow that can be specified | Spit out | Automatic temperature controller to fit |
|---|---|---|---|---|
| SH-3 | 4kw | 0.59 m3/min | φ50～φ100 | ＴＣ-6 |
| 5kw | 0.73 m3/min | |||
| SH-4 | 6kw | 0.88 m3/min | φ50～φ150 | |
| 7.5kw | 1.1 m3/min | TC-12 | ||
| SH-5 | 8kw | 1.17 m3/min | φ50～φ100 | |
| 10kw | 1.47 m3/min | |||
| SH-6 | 12kw | 1.76 m3/min | φ50～φ150 | |
| 15kw | 2.2 m3/min | TC-20 | ||
| SH-7 | 15kw | 2.35 m3/min | φ75～φ150 | |
| 18kw | 2.8 m3/min | |||
| SH-8 | 20kw | 3.13 m3/min | φ100～φ250 | |
| 24kw | 3.76 m3/min | TC-33 | ||
| 25kw | 4.2 m3/min | |||
| 30kw | 5.03 m3/min | |||
| SH-9 | 30kw | 5.03 m3/min | φ75～φ150 | |
| 33kw | 5.54 m3/min |
| Model | Heater body pressure | Maximum temperature for continuous use | Continuous maximum temperature of inhaled gas | Insulation |
|---|---|---|---|---|
| SH-3 | 30kpa (6000mmAq) | 320℃ | 250℃ | BodyThree-sided ceramic insulation |
| SH-4 | ||||
| SH-5 | ||||
| SH-6 | ||||
| SH-7 | 30kpa | |||
| SH-8 | ||||
| SH-9 |
