Daito Communication Apparatus Co.

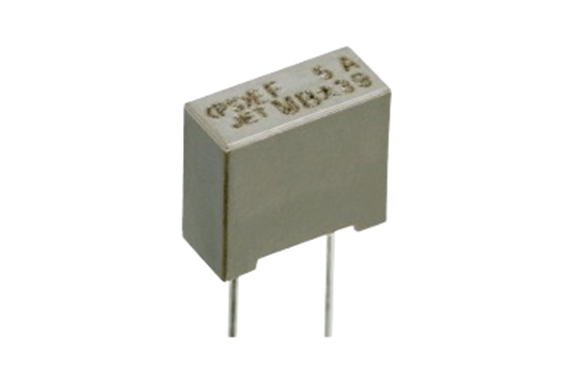

Daito BE Fuse Micro Fuse & Fuseholders
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: BE Fuse
Specifications
| Cat. No. | Rated Current | Breaking Capacity | Nominal Value | |
|---|---|---|---|---|
| Typical Resistance*1 | Joule Integral*2 | |||
| BE10 | 1 A | AC 125 V 50 ADC 63 V 50 A | 0.14 Ω | 0.3 A²·s |
| BE13 | 1.25 A | 0.10 Ω | 0.53 A²·s | |
| BE16 | 1.6 A | 79 mΩ | 0.86 A²·s | |
| BE20 | 2 A | 50 mΩ | 1.9 A²·s | |
| BE25 | 2.5 A | 40 mΩ | 3 A²·s | |
| BE32 | 3.15 A | 29 mΩ | 5.4 A²·s | |
| BE40 | 4 A | 23 mΩ | 11 A²·s | |
| BE50 | 5 A | 18 mΩ | 18 A²·s | |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 1 ms of I²t characteristics.
| Carrying Capacity | Clearing Time |
|---|---|
| 125% | 200% within 2 minutes 1,000% 1 ms to 10 ms |

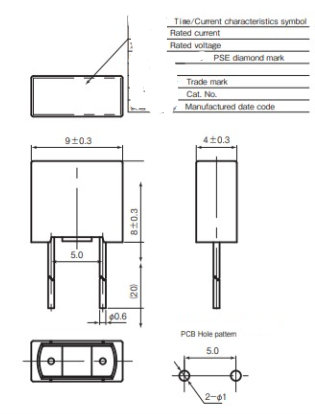

- Dimensions & Weight Size, Net Width
- 9×4×8mm0.4g
- Color
- Gray
- Package
- 2,000 pcs/taping sluice bin
, 2,000pcs/continuous taping
- Range of ambient temperature
- -20°C~85°
- Storage temperature
- -25°C~40°C (Taping state)
