Daito Communication Apparatus Co.

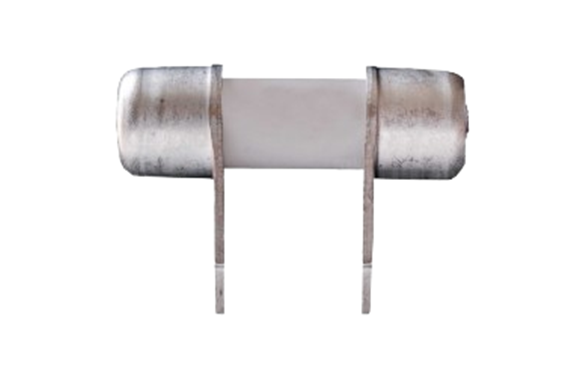

Daito DGAE1 40A DC Fuses For DC Circuit
Manufacturer: Daito Communication Apparatus Co., Ltd.
Model: DGAE1 40A
Features
- This product is a fuse for DC circuits.
- This product is a fuse for DC circuits.
- Trade mark (Manufacturer): NEW
Specifications
| Cat. No. | Rated Current | Breaking Capacity | Nominal Value | |
|---|---|---|---|---|
| Typical Resistance*1 | Joule Integral*2 | |||
| DGAE1 40A | 40 A | DC 550 V 1,000 A | 2.1 mΩ | 7,800 A²·s |
*1: Measured at 10% or less of the rated current.
*2: Joule integral is the value at 10 ms of I²t characteristics.

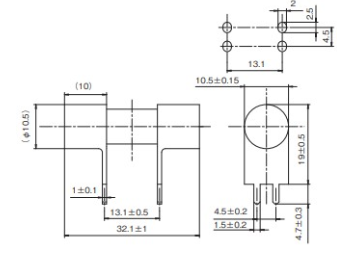

- Dimensions & Weight Size, Net Width
- Φ10.5×32.1mm 10.5g
- Package
- Minimum 100 units,
bulk packageminimum 100 units
- Range of ambient temperature
- -40°C~125°
- Storage temperature
- -40℃～80℃
