Manufacturer: Daito Kogyo Co., Ltd.

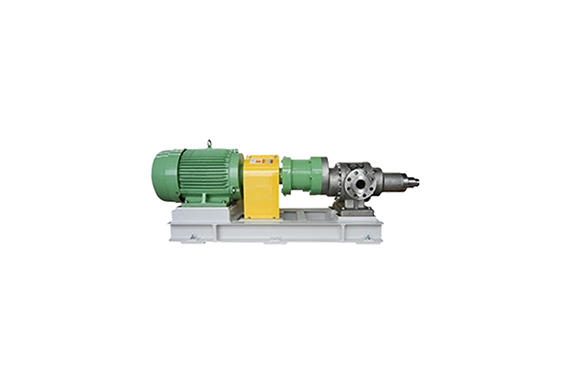

Model: MCER-15HT

Features

• This line pump maintains a high pressure so that the fluid containing gas does not evaporate in the line during transportation.
• The pump is a seal-less type which is impenetrable, strong and hermetic as a pressure vessel.

Specifications

• suction side pressure 4.3 MPa, discharge side pressure 5.0 MPa,
  Total pressure 0.7 MPa
  230 L/min x 1150 min^-1 x 7.5 kW
  An integrated safety valve is equipped.
