Datalink Corporation
Datalink ATS005T-W075U/C (Plug cut) Series AC Adapter
Manufacturer: DataLink
Model: ATS005T-W075U/C (Plug cut)
Features
- ATS005T-W075U/C is a plug-cut version of the AC adapter.
- The AC adapters sold separately or included with the product may be replaced with equivalent alternatives.
- This adapter is used as a standard accessory for models such as RSCV-T/PM-RoHS, RSCV-T/PV, and RS485/PV.
Specifications
| Item | Details |
|---|---|
| Operating Conditions | Temperature: +0°C to +40°C Humidity: +20% to 80% RH (non-condensing) |
| Storage Conditions | Temperature: -20°C to +80°C Humidity: +10% to 90% RH (non-condensing) |

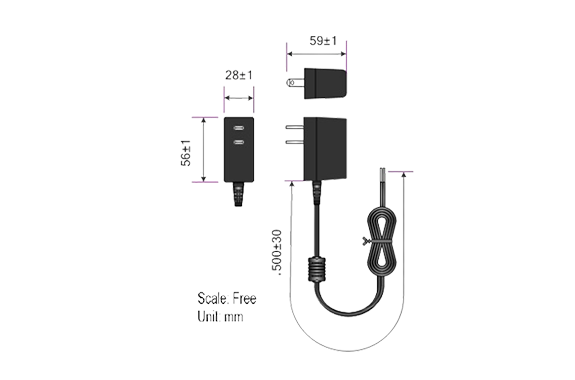

| Dimensions | Width: 56.0 mm Height: 59.0 mm (including AC plug) Depth: 28.0 mm Cord Length: 1465 mm ±30 (excluding DC plug) |
| Weight | Approx. 80g |
| Rating | Input: AC100V to 240V, 50/60Hz Output: DC7.5V / 0 to 1.0A |
| Input Voltage Range | AC100V to 240V, 50/60Hz |
| Output Voltage | DC7.5V ± 5% |
| Safety Standard | PSE |
| Environmental Standard | RoHS2 Compliant |
