Datalink ATS005T-W075U/T (O type terminal) AC Adapter
Manufacturer: DataLink
Model: ATS005T-W075U/T (O type terminal)
Features
- ATS005T-W075U/T is an AC adapter with an O-type terminal.
- The AC adapters, whether sold separately or included, may be substituted with equivalent models.
- When ordering a separately sold AC adapter, please specify it as “AC adapter for \[product name]” rather than by model number.
Example: “AC adapter for PP232-OPT.” - This adapter is compatible with separately sold products including FA422-RJ, PP232-OPT, PP422-OPT, PPU232-OPT, PPU422-OPT, PP232/422-OPT, OPT120K-232, OPT120K-SYNC, and THS5com.
Specifications
| Item | Details |
|---|---|
| Operating Conditions | Temperature: +0°C to +40°C Humidity: +20% to 80% RH (non-condensing) |
| Storage Conditions | Temperature: -20°C to +80°C Humidity: +10% to 90% RH (non-condensing) |

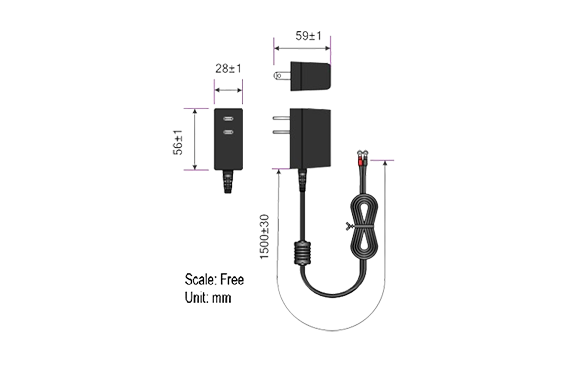

| Dimensions | Width: 56.0 mm Height: 59.0 mm (including AC plug) Depth: 28.0 mm Cord Length: 1465 mm ±30 (excluding DC plug) |
| Weight | Approx. 80g |
| Rating | Input: AC100V to 240V, 50/60Hz Output: DC7.5V / 0 to 1.0A |
| Input Voltage Range | AC100V to 240V, 50/60Hz |
| Output Voltage | DC7.5V ± 5% |
| Output Plug | Outer Diameter: φ5.5 ± 0.1 mm Inner Diameter: φ3.0 ± 0.1 mm |
| Safety Standard | PSE |
| Environmental Standard | RoHS2 Compliant |
