Manufacturer: DataLink
Model: CW Serial

Features

• CW Serial Analyzer is an ultra-compact, lightweight, and low-cost serial analyzer.
• It uses the free serial monitor application software CW-Analyzer to monitor RS232C, RS485, and RS422 data in real time.

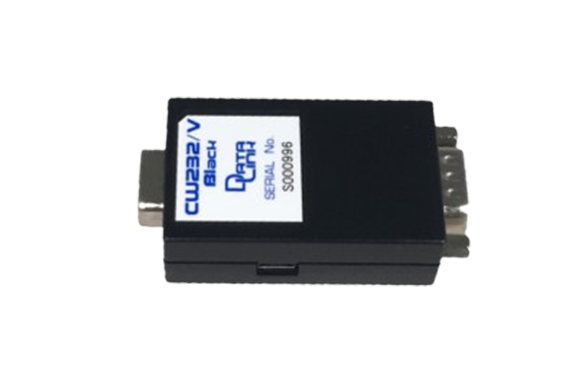

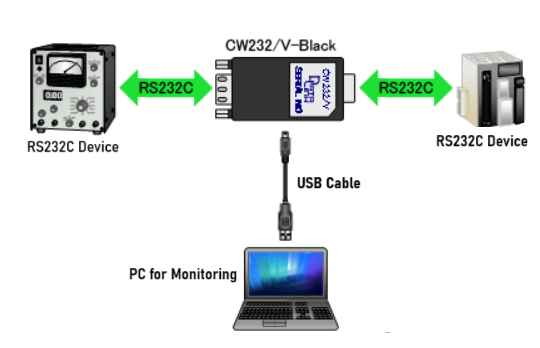

• CW232/V-Black is an RS232C analyzer with D-sub 9-pin male and female connectors on both ends.

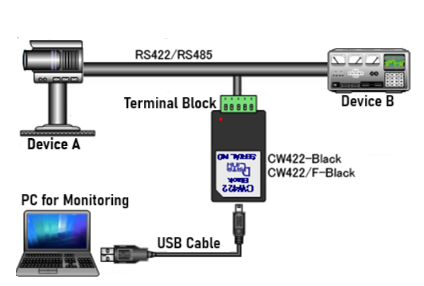

• CW422-Black is an RS422/RS485 analyzer with a 5-pin terminal block.

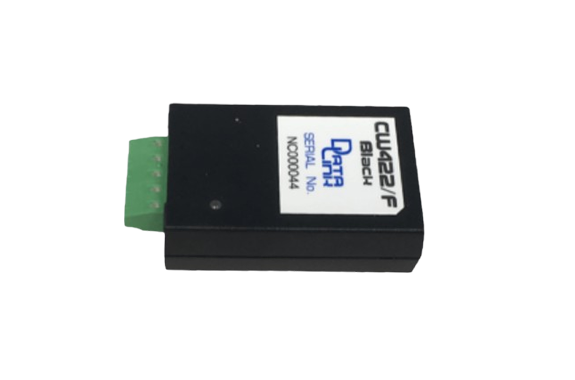

• CW422/F-Black is an advanced model of CW422-Black. It eliminates restrictions on connection and startup order by photo-isolating the main unit and the measurement line.

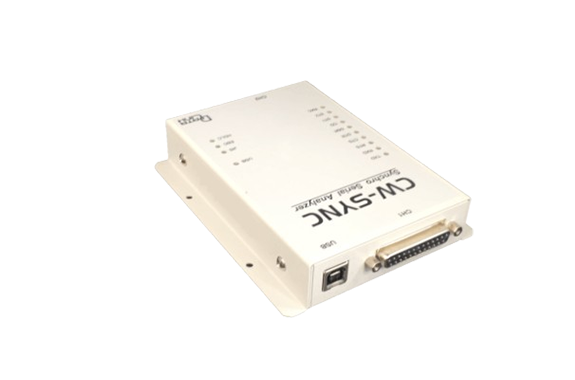

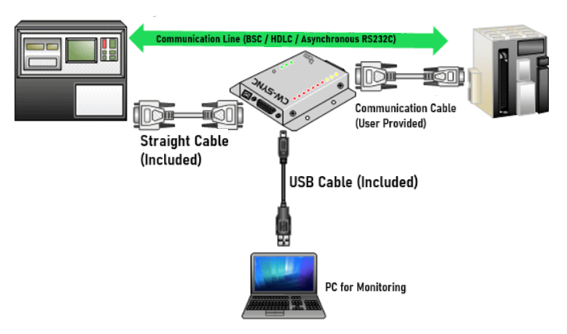

• CW-SYNC is a synchronous analyzer compatible with HDLC/BSC and has D-sub 25-pin male and female connectors on both ends.

Specifications

◆ CW Serial Analyzer Models

CW232/V-Black

CW422-Black

CW422/F-Black

CWSYNC

◆Connection configuration

• Connects to a monitor PC via USB (using the included CW-Analyzer application software).
• Measurement conditions such as communication speed can be set from the PC.
• Sample data and control line data (for CW232/V-Black only) are displayed on the PC.
• Capable of displaying, saving, playing, and printing sample data.
• Includes a time stamp function.
• Maximum measurable transmission speed is 230.4 Kbps.
• Sample data can be converted and saved as a text file and displayed in a familiar editor.
• Long-term sampling is possible by saving data to the PC’s hard disk.
