Datalink Corporation

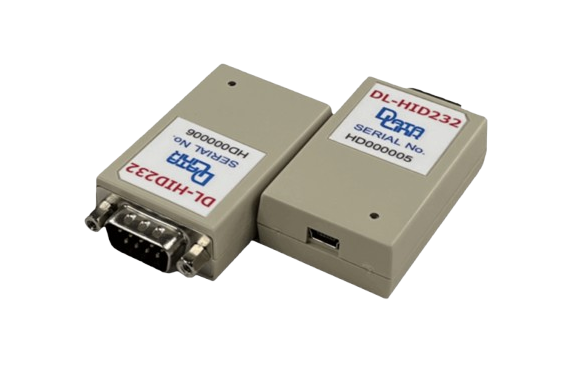

DataLink DL-HID232 Model PS2/RS232C to USB converter

Manufacturer: DataLink
Model: DL-HID232
Features
- Equipped with an RS232C interface on the input port.
- Equipped with a USB (HID) interface on the output port.
- Power supply: DL-HID232 draws power directly from the PC’s USB—no external power source needed.
- Includes standard connector size.
- Communication parameters are configurable.
- Conversion codes can be set as needed.
Specifications
◆DL-HID232 RS232C⇔USB conversion
- DL-HID232 is an interface that converts RS232C (ASCII code) to USB (HID).
- Allows RS232C devices to be used via a USB HID connection.
- Compatible with RS232C devices such as RS232C barcode readers.
- No external power supply or driver software is required.
- Data transmission direction: RS232C → DL-HID232 → USB (HID).

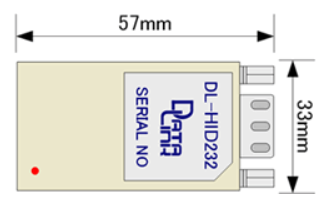

◆ DL-HID232 Dimensions
◆Outline specifications
Model | DL-HID232 |
---|---|
Operating conditions | Temperature: 0 to 50°C Humidity: (no condensation) |
Power supply | Powered from the PC’s USB port |
Power consumption | 30mA or less |
External dimensions | W:33mm D:57mm H:16mm |
weight | Approximately 25g |
