DataLink DL-U Series USB-RS232C/RS485/RS422 converter

Manufacturer: DataLink
Model: DL-U Series
Features
- DL-U series converters provide high-quality conversion from USB to RS485/RS422.
- A serial communication solution for a wide range of applications, including industrial equipment, control systems, and measuring devices.
- The DL-U series is compatible with Windows 7 to 11 operating systems.
Specifications
◆USB–RS485 Conversion (DL-U485F)
- Connects to RS485 devices via a PC’s USB port.
- Ideal for long-distance, multi-point, half-duplex communication.
- Plug & Play; no external power supply required.
- Built-in surge protection on RS485 transmission and reception lines.
- RS485 side is photocoupler-isolated to prevent noise transfer between devices.
◆USB–RS422 Conversion
- Connects to RS422 devices via a PC’s USB port.
- Ideal for long-distance, full-duplex communication.
- Plug & Play; no external power supply required.
- RS422 side is photocoupler-isolated to prevent noise transfer between devices.
- Surge protection IC is built into RS422 transmission and reception lines.
◆DL-U Series Converter Models

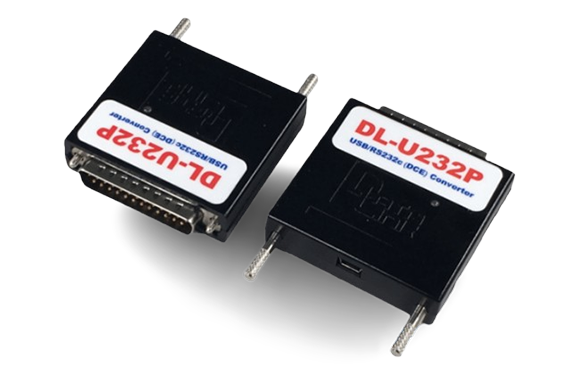

◆DL-U232P
- USB ⇔ RS232C converter
- Maximum communication speed: 230.4 Kbps
- Supported OS: Windows 7 to 11 (32-bit / 64-bit)
- RS232C connector: D-sub 25-pin male (DCE)
RS232C side Dsub25 male (DCE) | Maximum communication speed 230.4Kbps | Maximum transmission distance : 15m | Insulation Function | RTS/CTS/CD DTR/DSR |

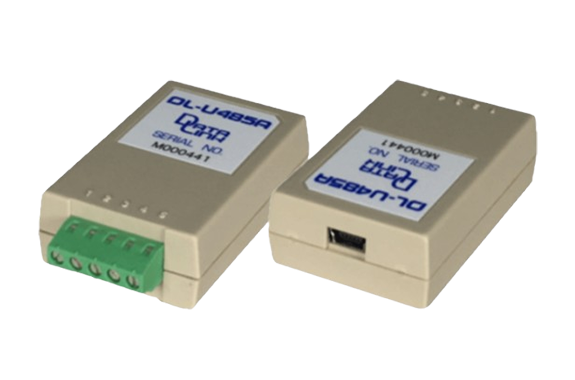

◆ DL-U485A
- USB⇔RS485 converter
- Maximum communication speed: 1.3824Mbps
- Supported OS: Windows 7 to 11 (32/64bit)
- RS485 connector is a 5-pin small terminal block
RS485 side 5P small terminal block | Maximum communication speed 1.3824Mbps | Maximum transmission distance : 1200m | ― | ― |

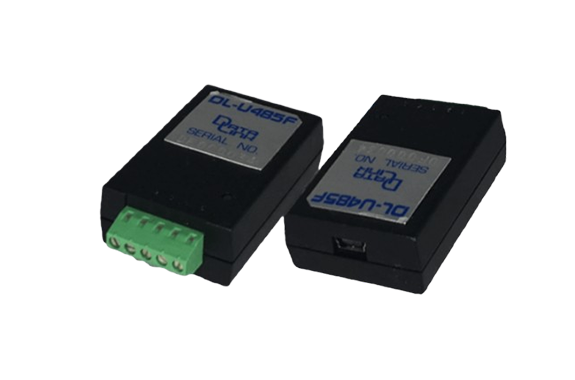

◆ DL-U485F
- USB⇔RS485 converter
- Maximum communication speed: 1.3824Mbps
- Supported OS: Windows 7 to 11 (32/64bit)
- RS485 connector is a 5-pin small terminal block
RS485 side 5P small terminal block | Maximum communication speed 1.3824Mbps | Maximum transmission distance : 1200m | Insulation Function | ― |

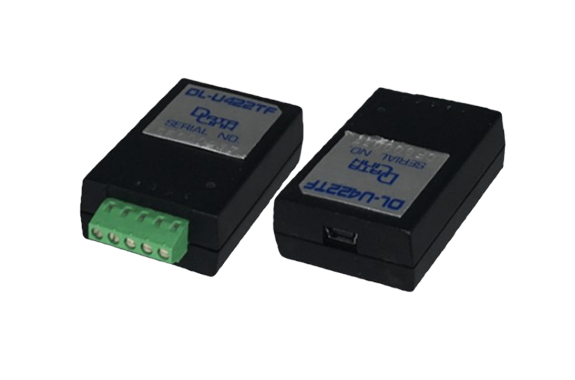

◆DL-U422TF
- USB⇔RS422 converter
- Maximum communication speed: 1.3824Mbps
- Supported OS: Windows 7 to 11 (32/64bit)
- RS422 side connector is a 5-pin small terminal block
RS422 side 5P small terminal block | Maximum communication speed 1.3824Mbps | Maximum transmission distance : 1200m | Insulation Function | ― |

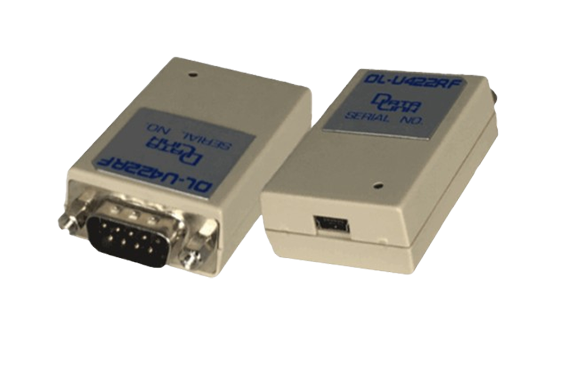

◆ DL-U422RF
- USB⇔RS422 converter
- Maximum communication speed: 1.3824Mbps
- Supported OS: Windows 7 to 11 (32/64bit)
- RS422 side connector is a 5-pin small terminal block
RS422 side 5P small terminal block | Maximum communication speed 1.3824Mbps | Maximum transmission distance : 1200m | Insulation Function | RTS/CTS |
◆FA-U422/485T
- USB⇔RS422/RS485 converter.
- Converter with measures against FA environmental noise, lightning surges, static electricity, etc.
- Maximum communication speed: 3Mbps
- Supported OS: Windows 7 to 11 (32/64bit)
- Extends the distance between USB devices up to 1200m and can be fixed to a DIN rail
◆ USB-RS232C Conversion Adapter Specifications
Model | DL-U232P |
---|---|
Maximum communication speed | 230.4Kbps |
Converted Signal | TXD/RXD RTS/CTS DTR/DSR CD |
External dimensions (mm) | W57/H15/D53 |
Weight (g) | Approx. 42g |
Maximum Transmission Distance | 15m |
Current consumption | 100mA or less / 5V |
Insulation Function | Photocoupler |
Serial side connector | Dsub25 pin male (DCE) |
USB Standards | USB1.1 or USB2.0 |
SERIAL standard | RS232C |
Supported OS | Windows 7 to 11 (32/64bit) |
◆ USB-RS485 Conversion Adapter Specifications
Model | DL-U485A | DL-U485F |
---|---|---|
Maximum communication speed | 1.3824Mbps | 1.3824Mbps |
Converted Signal | D+/D- | D+/D- |
External dimensions (mm) | W33/H16/D59 | W33/H16/D59 |
Weight (g) | Approximately 20g | Approximately 20g |
Maximum Transmission Distance | 1200m | 1200m |
Current consumption | 100mA or less /5V | 100mA or less /5V |
Insulation Function | none | Photocoupler |
Serial side connector | 5-pin miniature terminal block | 5-pin miniature terminal block |
USB Standards | USB1.1 or USB2.0 | USB1.1 or USB2.0 |
SERIAL standard | RS485 | RS485 |
Supported OS | Windows 7 to 11 (32/64bit) | Windows 7 to 11 (32/64bit) |
◆ USB-RS422 conversion adapter specifications
Model | DL-U422F | DL-U422RF |
---|---|---|
Maximum communication speed | 1.3824Mbps | 1.3824Mbps |
Converted Signal | TXD/RXD | TXD/RXD RTS/CTS |
External dimensions (mm) | W33/H16/D59 | W33/H16/D59 |
Weight (g) | Approximately 20g | Approximately 20g |
Maximum Transmission Distance | 1200m | 1200m |
Current consumption | 100mA or less /5V | 100mA or less /5V |
Insulation Function | Photocoupler | Photocoupler |
Serial side connector | 5-pin miniature terminal block | 5-pin miniature terminal block |
USB Standards | USB1.1 or USB2.0 | USB1.1 or USB2.0 |
SERIAL standard | RS422 | RS422 |
Supported OS | Windows 7 to 11 (32/64bit) | Windows 7 to 11 (32/64bit) |
