Datalink Corporation

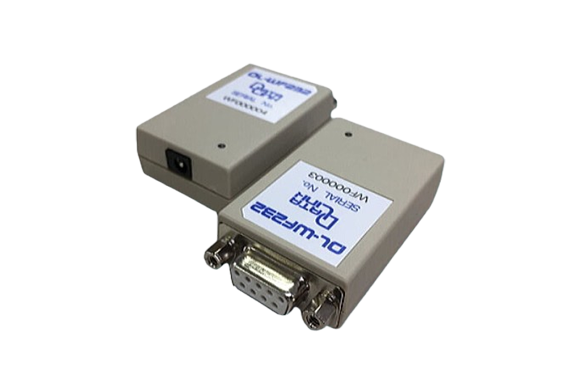

DATALINK DL-WF232 SERIES RS232C/Wi-Fi CONNECTION DEVICES



Manufacturer: DataLink

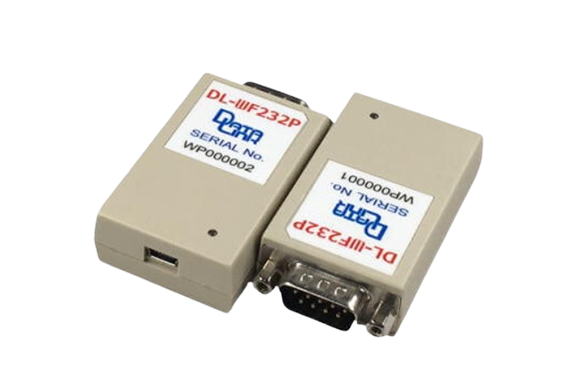

Model: DL-WF232 and DL-WF232P
Features
- This product is an interface for connecting RS232C devices to a wireless access point (AP).
- By using two units as a pair, communication between RS232C devices is also possible.
- Can be used between our Terumo Wire controller [Po422/M] and a PC.
- Utilizes a 2.4GHz Wi-Fi chip; supports communication via TCP/IP or UDP.
- Wireless communication is OS-independent.
- Built-in antenna with a maximum communication distance of approximately 50 meters (distance may vary depending on the environment).
- Comes with an AC adapter and RS232C straight cable (9P-9P) for immediate use.
- Includes 1K byte receive buffer memory on both RS232C and Wi-Fi sides; data is relayed via buffer without flow control.
- Certified under Japan’s Radio Law (technical standards conformity).
- Power supply options:
– DL-WF232: Powered by the included AC adapter
– DL-WF232P: Powered via USB adapter (user-supplied) - RoHS compliant.
Specifications
◆RS232C Wireless Converter
- Enables RS232C devices to connect to a wireless access point via Wi-Fi.
- RS232C devices can be used even in environments where cabling is not possible.
- Communication is established by simply setting the communication parameters and configuring one unit as AP (Access Point) and the other as STATION.
- Maximum communication distance between devices is approximately 50 meters.
- Three major benefits of the RS232C wireless converter:
- 1.Reduced wiring costs – Achieve wireless RS232C communication to minimize cable installation.
2.Compatible with existing equipment – Upgrade legacy RS232C devices to support wireless LAN connections.
3.Industrial/commercial design – Ensures stable RS232C wireless communication in environments like factories and shopping malls.
◆Outline specifications
Model | DL-WF232 | DL-WF232P |
---|---|---|
Wireless Standards | Wi-Fi (2.4GHz IEEE802.11b/g/n) | Same as above |
Operating temperature | 0 to 50°C | Same as above |
Operating humidity | No condensation | Same as above |
Transmission distance | 50m (maximum) | Same as above |
Serial Interfaces | RS232C (Dsub9 pin female) | RS232C (Dsub9 pin male) |
Body dimensions | W33 × H16 × D57 (excluding protrusions) | Same as above |
Product weight | Approximately 25g | Same as above |
environmental standards | RoHS Compliant | Same as above |
Power consumption | 0.1A or less/DC3.3V | 0.1A or less/5V *1 |
AC adapter input voltage range | AC100V to AC240V | AC adapter is not included. USB adapter must be prepared by the user. |
AC adapter maximum output | 2A/DC3.3V | – |

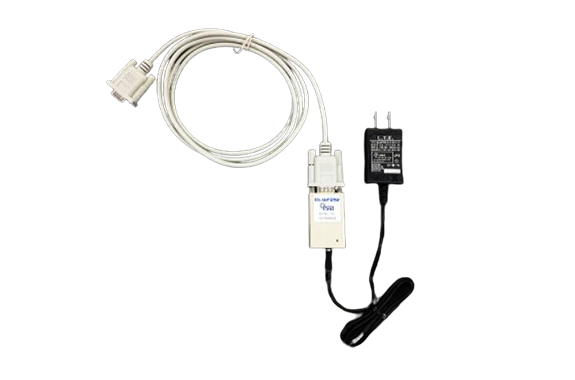

◆DL-WF232 and AC adapter/RS232C cable connection

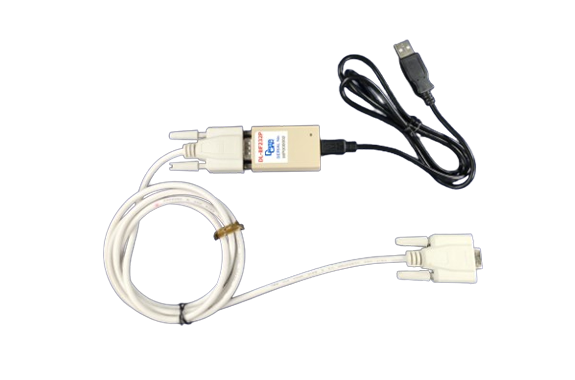

◆ RS232C cable/USB cable to DL-WF232P connection
