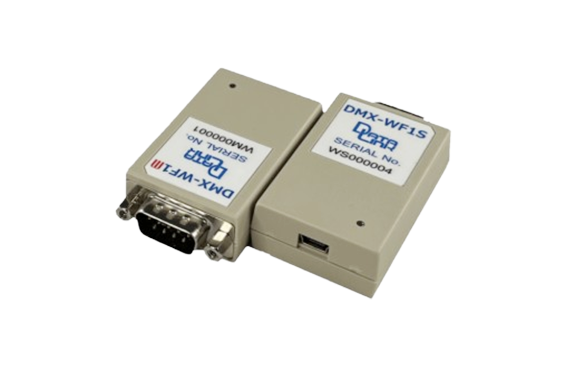

DataLink DMX-WF1 RS232C Wireless Multiplexer

Manufacturer: DataLink
Model: DMX-WF1
Features
Specifications
- The main unit is compact, roughly the size of a small connector.
- Uses Wi-Fi for wireless communication, enabling longer range than Bluetooth.
- Supports multi-channel communication by connecting multiple RS232C devices to a master and multiple slaves via Wi-Fi.
- Ideal for environments where cable installation is difficult.
- Includes a multi-function polling mode, reducing software burden on the user.
- No RS232C or RS422 cabling is required between devices at the installation site.
- Communication distance between DMX-WF1M (master) and DMX-WF1S (slave) is approximately 50 to 100 meters.
◆Outline specifications
Environmental temperature | 0 to 50°C |
Environmental humidity | No condensation |
Weight | 25g |
Power supply | USB power supply (5V output) provided by user |
Interface | RS232C Dsub9 pin (male) DTE arrangement DTR and DSR are shorted internally Wi-Fi 2.4GHz Technical Approval Certified |
RS232C communication specifications | 10K byte send/receive buffer |
◆RS232C wireless multiplexer
- The DMX-WF1 multiplexer is an industrial solution for connecting multiple RS232C slave devices wirelessly to a single RS232C master.
- Converting conventional wired connections to wireless reduces wiring costs, allows for more flexible layout changes, and improves maintenance efficiency.
- One master can connect to up to four slaves simultaneously.
- The RS232C multiplexer can be configured wirelessly.
