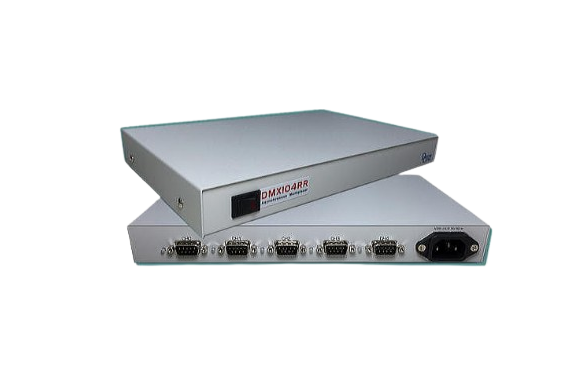

DataLink DMX104 Series RS232C(RS422) Multiplexer

Manufacturer: DataLink
Model: DMX104
Features
- DMX104 is a multiplexer designed to send data from one controller to up to four terminals simultaneously.
- Two-way communication is possible between the master and slaves, but simultaneous transmissions from slave sides may cause data corruption.
- For such use cases, consider a buffered model like DMX214F.
- Available interface configurations for master and slave:
DMX104-RR: All channels RS232C
DMX104-AA: All channels RS422
DMX104-RA: Master RS232C, Slave RS422 - Equipped with a built-in wide-range power supply (AC85V to AC240V).
- Metal housing provides improved shock and noise resistance.
- All channels are photo-isolated for enhanced electrical protection.
- Unlike previous multiplexer models, there is no software control (e.g., for setting communication parameters or commands).
- Includes a 5-year free warranty, starting from the shipment date from our company.
