Datalink Corporation

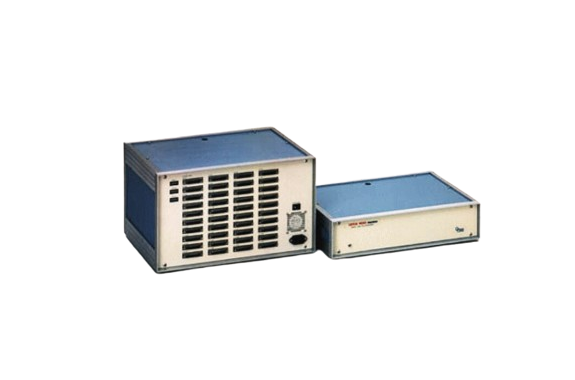

DataLink DMX400 Series RS232C(RS422) Multiplexer

Manufacturer: DataLink
Model: DMX400
Features
- This is the oldest model in the DMX series.
- Features a D-sub 25-pin connector.
- RS232C or RS530 (RS422) can be selected for both master and slave channels.
- Supports communication speeds up to 19.2 Kbps.
- Each master and slave channel includes buffer memory.
- Supports various communication methods, including channel switching, simultaneous broadcasting, and polling scanning.
- Models with up to 40 channels are available (channels 1 to 39).
- Recommended for users replacing MR-P, MR-J series, or DMX300 series.
- The DMX400 series model number is written as follows (format provided separately).
