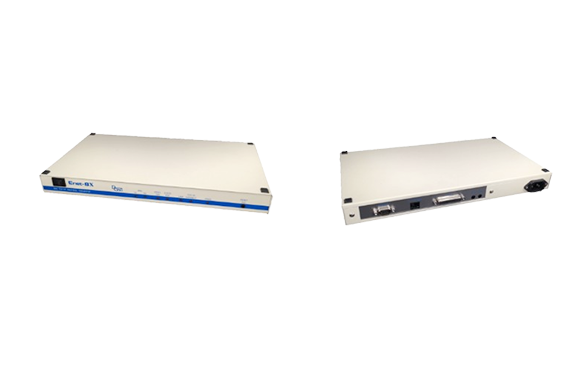

DataLink Enet-BX Ethernet/BSC Protocol Converter

Manufacturer: DataLink
Model: Enet-BX

Features

  • Allows BSC protocol devices, such as large computers, to connect to Ethernet, enabling network integration.
  • Enet-BX is the successor to the popular Enet-B, featuring enhanced functionality.
  • Provides a one-to-one interface between Ethernet and independent synchronous (BSC) RS232C.
  • The Ethernet channel includes TCP/IP protocol as standard and supports TCP/IP socket communication.
  • BSC communication settings and Ethernet addresses are configured in program mode and stored in FLASHROM (electrically erasable/editable memory).
  • Properly configured protocols can communicate seamlessly without requiring complex inter-protocol adjustments.
  • Settings can be saved in FLASHROM via the console port (asynchronous RS232C) or by TELNET login over Ethernet.
  • Ethernet channel supports 10Base-T / 100Base-TX, with automatic switching.
  • The BSC channel connector is a D-sub 25-pin female (DTE arrangement) and is dedicated to BSC communication.

Specifications

Communication speed50 to 19200bps
Control CodeASCII (JIS8) / EBCDIC
IDAdd/Remove ID String Settings
TransparencyTransparent/non-transparent selection when sending (automatic recognition when receiving)
Modem SupportHalf duplex / Full duplex
BCCCCITT/CRC16
TimerTimeout/retry times and number of times can be set arbitrarily
Code ConversionText code conversion (JIS, EBCDIC, EBCDIK)
◆Outline specifications
Operating conditionsTemperature: ±0 to 50°C
Humidity: 30 to 80% (no condensation)
Input Voltage RangeAC85~264V (50/60Hz) *2
External dimensionsW353 × H46 × D200mm
WeightApprox. 2.0 kg
Power consumption
(at AC100V)
6W
InterfaceBSC side: Dsub 25 pin female (DTE arrangement)
Ethernet side: RJ45 (10Base-T/100Base-TX)
Console port: Dsub 9 pin male (DTE arrangement)
On-board protocolsBSC side: BSC procedure
Ethernet side: TCP/IP, ICMP, ARP, TELNET *1
Console port: Asynchronous RS232C
