DataLink Enet-HDLC/AC Series HDLC Free Run/UDP Protocol Converter

Manufacturer: DataLink
Model: Enet-HDLC/AC
Features
- Enet-HDLC-RoHS and Enet-HDLC/AC operate in Asynchronous Balanced Mode (ABM) and support LAP-B procedure class.
- The Enet-HDLC/PLL series is a higher-end version of the Enet-HDLC series.
- It includes a built-in PLL function, allowing connection to HDLC devices that do not output a transmission synchronization signal.
- Synchronization is possible without a clock signal, using the PLL function.

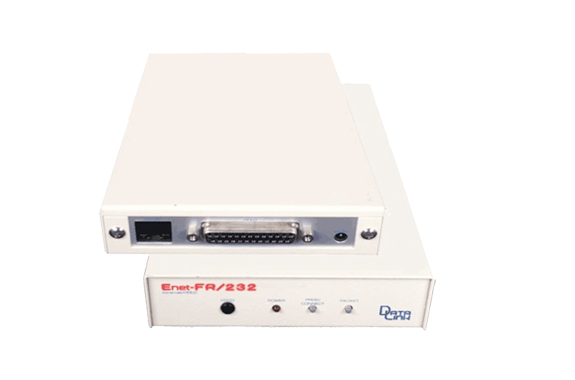

- Enet-FR and Enet-FX are communication devices that support HDLC free run and have built-in UDP/IP protocols.
- These devices can communicate with host computers via UDP/IP.
- The Ethernet side includes UDP/IP and TELNET as standard.
- UDP/IP socket communication is used to interact with Enet-FR and Enet-FX.
- TCP/IP connections can be opened or closed from either the Enet-HDLC side or the host side.
- Communication settings, Ethernet-related addresses, etc., can be configured interactively in program mode and are stored in FLASH ROM.
- Settings can be made by:
Connecting a cable to the HDLC port (temporarily used as RS232C or RS422 during setup).
Or by using TELNET login from Ethernet. - The Ethernet port supports 10Base-T/100Base-TX (auto-switching).
- The Enet-HDLC/AC can be DIN rail-mounted using the optional bracket (model: DRA-1).
- The HDLC port is selectable:
D-sub 25-pin female (RS232C)
D-sub 15-pin female (RS422) - Connector shapes:
RS232C type: D-sub 25-pin female
RS422 type: D-sub 15-pin female (for both Enet-HDLC-RoHS and Enet-HDLC/AC)
Specifications
Model Enet-HDLC/AC Operating conditions Temperature: ±0 to 50°C
Humidity: 30 to 80% (no condensation)Input Voltage Range AC 100–240V (50/60Hz) Main unit current consumption 100mA / AC100V (max) External dimensions W180 × H28.5 × D185mm (excluding connectors and other protrusions) Weight Approximately 960g Application Layer TELNET *2 Transport Layer TCP Network Layer IP, ICMP *3 Port 10Base-T / 100Base-TX auto-switching (RJ45 connector) HDLC Interface Connector RS232 type DSUB25
RS422 type DSUB15HDLC Commands Support
