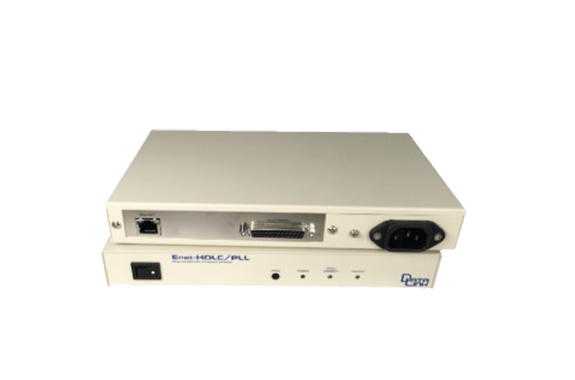

DataLink Enet-HDLC/PLL Series Ethernet/HDLC protocol converter with PLL function

Manufacturer: DataLink
Model: Enet-HDLC/PLL
Features
- Enet-HDLC-RoHS and Enet-HDLC/AC operate in Asynchronous Balanced Mode (ABM) and support the LAP-B procedure class.
- The Enet-HDLC/PLL series is a higher-end version of the Enet-HDLC series.
- It features a built-in PLL function, enabling connection to HDLC devices that do not output a transmission synchronization signal.
- Synchronization is possible without a clock signal, using the PLL function.
- Enet-FR and Enet-FX are communication devices that support HDLC free run and come with built-in UDP/IP protocols.
- These devices can communicate with host computers via UDP/IP socket communication.
- The Ethernet side supports UDP/IP and TELNET as standard.
- TCP/IP connections can be opened or closed from either the Enet-HDLC side or the host side.
- Communication settings and Ethernet-related addresses are configured interactively in program mode and stored in FLASH ROM.
- Settings can be made by:
- Connecting a cable to the HDLC port, which temporarily functions as RS232C or RS422 during setup.
- Or by using TELNET login via Ethernet.
- The Ethernet port supports 10Base-T / 100Base-TX (auto-switching).
- The Enet-HDLC/AC can be DIN rail-mounted using the optional bracket (model: DRA-1).
- The HDLC port is selectable:
D-sub 25-pin female (RS232C)
D-sub 15-pin female (RS422) - Please specify the type when ordering.
- Connector shape summary:
RS232C type: D-sub 25-pin female
RS422 type: D-sub 15-pin female (for both Enet-HDLC-RoHS and Enet-HDLC/AC)
Specifications
Model | Enet-HDLC/PLL |
---|---|
Operating Temperature | ±0 to 50°C |
Humidity | Water-resistant (no condensation) |
Input Voltage Range | AC100V to 240V (50/60Hz) |
Main unit current consumption | 100mA / AC100V (max) |
External dimensions | W240 × H32 × D146mm (excluding connectors and other protrusions) |
Weight | Approx. 992g |
Application Layer | TELNET *2 |
Transport Layer |
