Manufacturer: DataLink
Model: Enet Series

Features

• • The Enet series is an Ethernet/RS232C protocol converter that enables two-way communication between asynchronous RS232C and Ethernet protocols.
  • Connect to a PC via LAN cable to control RS232C devices over the network.
  • Equipped with a built-in wide-range AC power supply (AC85V to AC264V), except for the PoE-S25 model.
  • PoE-S25 is a version that replaces AC power with PoE (Power over Ethernet):
    Supports IEEE802.11AF (15W power input)
    Provides DC5V, up to 500mA to external devices via USB-miniB connector (e.g., Wi-Fi or BLE routers)
    Can also operate via USB power supply if PoE is not used
  • Serial communication settings and Ethernet addresses are configured in program mode and stored in flash ROM.
  • Once properly configured, protocols can communicate without requiring complex translation or matching logic.
  • Serial channels include input/output buffers for syncing different communication methods:
    Enet-S25, PoE-S25, and Enet-S: 10kB input/output buffer
    Enet-SS: 7.5kB input/output buffer per channel
  • Ethernet channels support 10Base-T / 100Base-TX with automatic recognition.
  • Ethernet channel includes TCP/IP protocol as standard.
  • Settings for the Enet series are done via the TELNET protocol (used exclusively for configuration).
  • Can be DIN rail-mounted using the optional mounting bracket.

Specifications

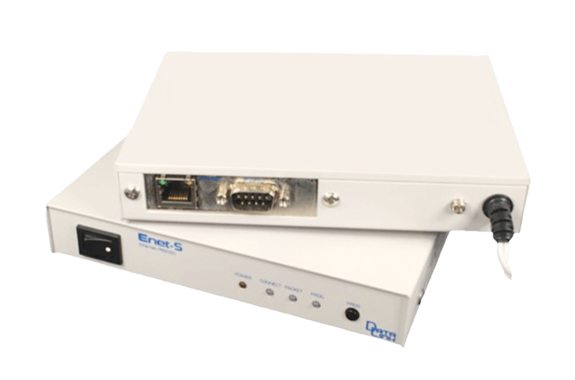

◆ Eent-S

• RS232C ⇔ LAN converter
• Built-in AC power supply: AC85V to AC264V
• Communication conditions are configurable
• RS232C connector: D-sub 9-pin male (DTE)
• Ethernet connector: RJ45 (10/100Base-T)

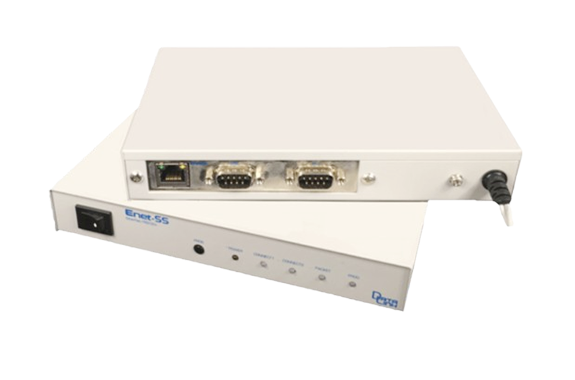

◆Enet-SS

• RS232C⇔LAN converter
• Built-in AC power supply: AC85V to AC264V
• Communication conditions can be set
• RS232C side connector is Dsub9-pin male (DTE) x 2 ports
• Ethernet side connector is RJ45 [10/100 Base]

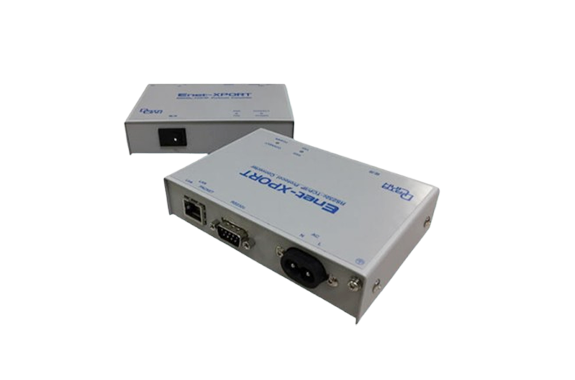

◆Enet-XPORT

• RS232C⇔LAN converter
• Built-in AC power supply: AC85V to AC264V
• Communication conditions can be set
• RS232C side connector is Dsub9 pin male (DTE)
• Ethernet side connector is RJ45 [10/100 Base]

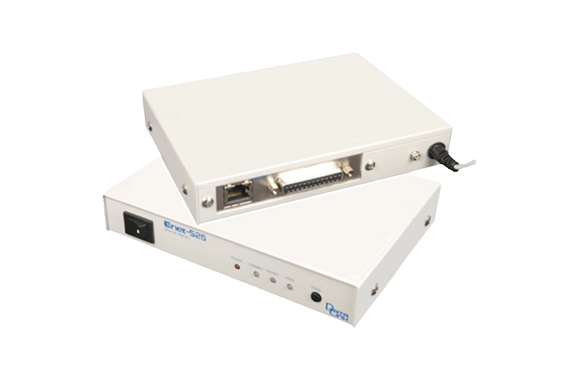

◆Enet-S25

• RS232C⇔LAN converter
• Built-in AC power supply: AC85V to AC264V
• Communication conditions can be set
• RS232C side connector is Dsub25 pin female (DTE)
• Ethernet side connector is RJ45 [10/100 Base]
