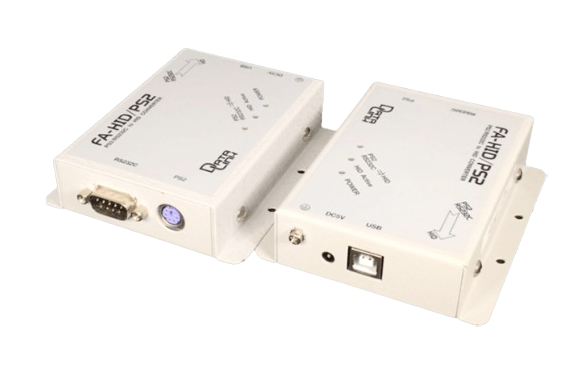

DataLink FA-HID/PS2 Series FA Specification PS/2 (RS232C) / USB (HID) Converter
Manufacturer: DataLink
Model: FA-HID/PS2
Features
- A multi-function converter that enables PS2 to USB conversion and USB HID serial communication with one-touch operation.
- Solves connectivity issues with legacy devices and supports bidirectional conversion between PS2 and USB HID.
- Input ports: One RS232C and one PS2 interface.
- Output port: USB (HID) interface.
- Powered via USB from the PC—no external power supply required.
- Up to 1A power supply available using optional AC adapter (Model: Spu10-102).
- Can supply up to 5V/0.35A to the connected PS2 device.
- DIN rail mountable with an optional mounting bracket.
Specifications
| Model | FA-HID/PS2 |
|---|---|
| Operating conditions | Temperature: 0 to 50°C Humidity: 30 to 80% (no condensation) |
| Power supply | Powered from the PC’s USB port (max. 5V/0.5A) |
| Power consumption | 5V / 0.15A |
| Output to PS/2 devices | 5V / 0.35A (max) |
| External dimensions | W98 × H27 × D104mm |
| Weight | Approximately 295g |
| RS232C Connector | Dsub9 pin male (DTE arrangement) |
| PS/2 Connector | miniDIN 6 pin female |
| USB Connector | Series B Female |
| Maximum communication speed | 115.2kbps (RS232C) |

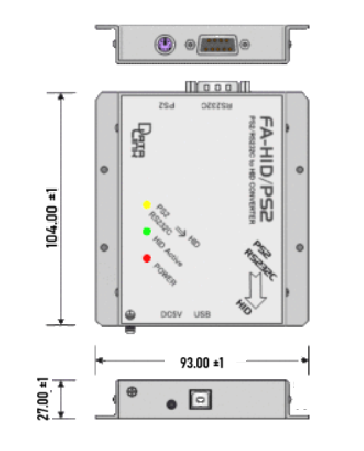

◆ FA-HID/PS2 dimensional diagram
