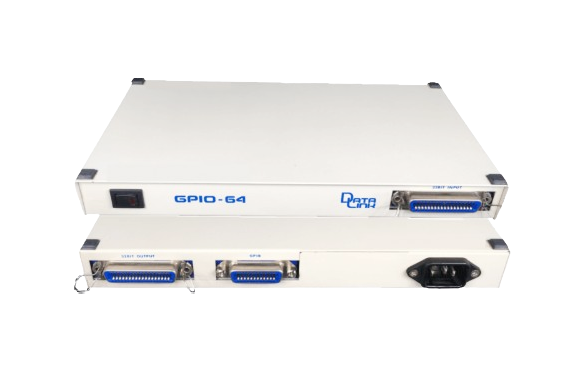

DataLink GPIO64 Series GPIB/TTL Converter

Manufacturer: DataLink
Model: GPIO64
Features
- Supports sampling of BCD data and strobe input.
- The control port is GP-IB.
- Equipped with 32 input bits, 32 output bits, 1 pulse input, and 1 pulse output.
- Maximum pulse rate: 10 kHz
- Allows programmable operation to detect input changes and issue an SRQ to the controller.
- GP-IB address and delimiter can be configured using a DIP switch.
Specifications
Model | GPIO64 |
---|---|
Control Port | GP-IB |
Control Connector | IEEE-488 compliant |
I/O Connectors | Amphenol 36 pin female |
External dimensions | W286 × H42 × D168 |
Weight | Approximately 1.2kg |
Input Voltage Range | AC85–134V |
Power consumption | AC100V / 5W |
