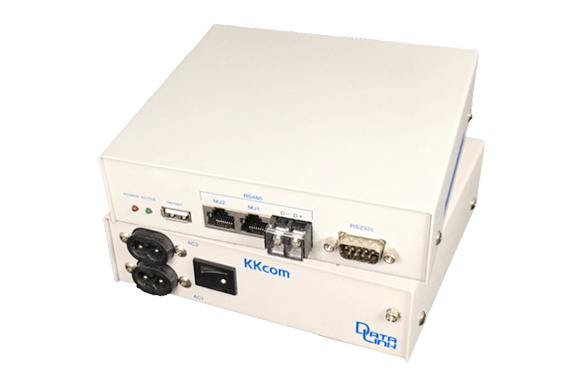

DataLink KKcom Series AC voltage,Temperature And Humidity Data Monitor

Manufacturer: DataLink
Model: KKcom
Features
- This is an interface device that measures AC voltage, temperature, and humidity, and sends the results to a PC.
- Equipped with a built-in uninterruptible power supply (UPS) that continues operation for up to 8 seconds during AC power interruption.
- Measures instantaneous AC voltage in the range -141V to +141V with the following functions:
Zero-cross to zero-cross sampling
Peak value detection and output
Continuous sampling and transmission
Timed sampling (1 second) and transmission - One temperature and humidity sensor (THsensor) can be connected directly or via a USB-shaped cable (up to 20m; not USB standard).
- Measures temperature from -40.0°C to +80.0°C and humidity from 00.0% to 99.9%.
- Data can be transmitted on command from the PC or automatically at set intervals.
- Communication speed: 115.2 Kbps (for both RS232C and RS485).
- RS485 communication can extend up to 1.2 km.
- RS485 interfaces available:
2-pin terminal block (2-wire metal cable)
RJ45, using commercially available LAN cables - RS485 is photo-isolated, and noise resistance complies with IEC standard test level 4:
Surge Test: IEC61000-4-5, ±4kV
Electrostatic Test: IEC61000-4-2, ±10kV
EFT/Burst Test: IEC61000-4-4, ±2kV - Input voltage range: AC100V to AC240V.
Specifications
Model | KKcom | THsensor (accessory) *1 |
---|---|---|
Operating conditions | Temperature: -15 to +50°C Humidity: Moisture-proof/anti-condensation | Temperature: -40 to +80°C Humidity: 0.00~99.9% |
Dust prevention measures | Dustproof | |
Power supply | Attached AC cable | Supplied directly from the main unit’s USB connector |
Main unit input voltage range | AC100V to AC240V | |
Power consumption | 3W / AC100V | |
External dimensions | W147 × H40 × D134(mm) | W60 × H11 × D23(mm) |
Weight | Approx. 661g | Approximately 10g |
Maximum communication speed | 115.2Kbps | |
Maximum Transmission Distance | 1.2km (when using RS485) | |
Transmission Interface | RS232C: Dsub9 pin male (DTE arrangement) RS485: 2 pin terminal block / RJ45 jack | |
Environmental standards | RoHS Compliant | RoHS Compliant |
Measurement Voltage Range | -141V to +141V | |
Measurement accuracy/error | AD 10bit / ±2% |
◆ THsensor (accessory)
