Datalink Corporation

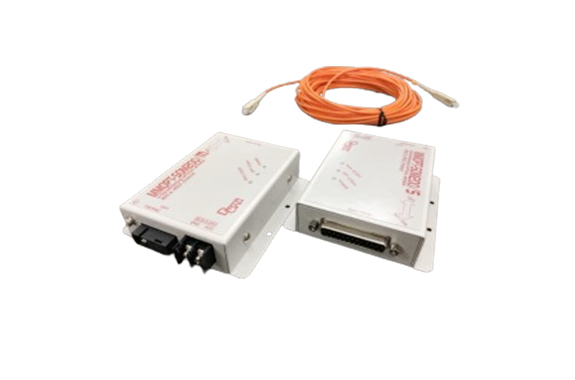

DataLink MMOPT-SOM200 Series Fiber Optic USB Extender

Manufacturer: DataLink
Model: MMOPT-SOM200
Features
- Uses a commercially available single-core SC multimode optical cable.
Maximum extension distance: 2 km.
Optical fiber prevents equipment malfunction or damage from induced lightning and external noise.
Power supply is optional (customer-provided).
Input voltage range: DC6V to DC24V
A dedicated AC adapter is available separately.
You can mount the device on a DIN rail using an optional bracket.
Use the dip switches on the bottom to configure the communication settings.
Specifications
Model | MMOPT-SOM200 |
---|---|
Supported communication methods | Asynchronous/synchronous method |
Serial Connector | Dsub25Pin Female DCE |
Optical Connector | 1-core SC cable compatible connector |
Maximum communication speed | Maximum 115.2Kbps |
External dimensions and weight | W93 × H27 × D104mm ±1 (excluding connectors and other protrusions) Approx. 300g per unit |
