Datalink Corporation

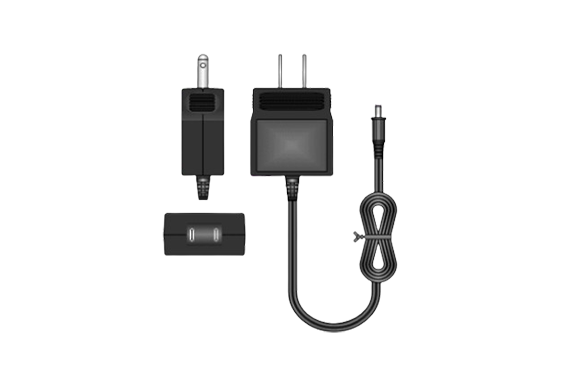

Datalink NP12-US0913 Series AC Adapter
Manufacturer: DataLink
Model: NP12-US0913
Features
- NP12-US0913 is a standard AC adapter model.
- The AC adapters, whether sold separately or included, may be replaced with equivalent products.
- This adapter is used as a standard accessory for products such as Po422-CS, Po422-CP, and PoUSB-P.
Specifications
| Item | Details |
|---|---|
| Operating Conditions | Temperature: +0°C to +40°C Humidity: 20% to 90% RH (non-condensing) |
| Storage Conditions | Temperature: -20°C to +80°C Humidity: 10% to 95% RH (non-condensing) |
| Dimensions | Width: 47.8 mm Height: 25.5 mm Depth: 54.6 mm (Including AC socket and cord) Cord Length: Approx. 1640 mm (excluding DC plug) |
| Weight | Approx. 95g ±10g |
| Rating | Input: AC100V to 240V, 50/60Hz Output: DC9V, 1.3A |
| Matching DC Jack | EIA RC5320A φ4.75 × 1.7 (Voltage Class 3) |
| Output Plug | EIA RC5320A Type 3 (Voltage Class 3) |
| Safety Standard | PSE, UL |
