Datalink Corporation
DataLink OTG-232HID/PCB Series OEM Supply Compatible Product
Manufacturer: DataLink

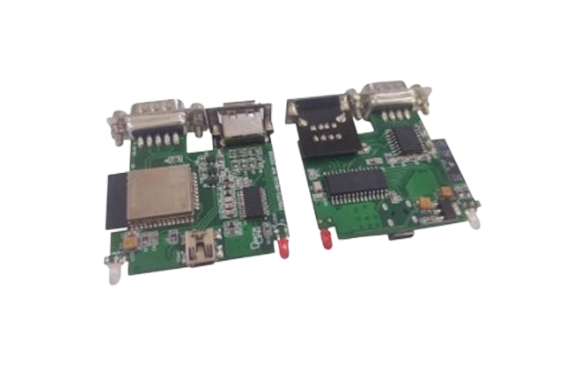

Model: OTG-232HID/PCB
Features
- An interface that outputs HID data received from OTG (HID) to RS232C.
- Data transmission direction: HID device → OTG-232HID/PCB → RS232C device.
- Supports USB 1.1 and USB 2.0.
- Communication parameters are easily configurable.
Specifications
| Model | OTG-232HID/PCB |
|---|---|
| Function | OTG function |
| Environmental temperature | 0 to 50°C |
| Environmental humidity | No condensation |
| Shape | Width: 55mm Height: 52mm Thickness: 14mm |
| Weight | 40g |
| Power supply | 5V is supplied from a USB power supply (user-supplied) connected to the USB-MiniB, or from the USB of a PC. |
| Power consumption | During communication: 80mA |
| USB-MiniB | 1) Simply supplies power to the OTG-232HID 2) In addition to supplying power, it also has VCOM communication function as a USB device. It has a 10K byte receive buffer. |
| RS232C communication specifications | DSUB9 pin (male) DTE arrangement RS232C pin arrangement |
