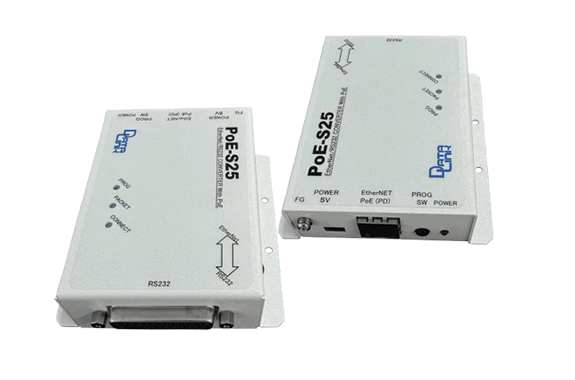

DataLink PoE-S25 Series PoE Power Supply Ethernet/RS232C Protocol Converter
Manufacturer: DataLink
Model: PoE-S25 Series
Features
Specifications
| PoE power supply | 5-year warranty | ROHS | RTS/CTS DTR/DSR XON/XOFF | Dsub25 pin female connector x 1 DTE |
◆ General Characteristics
| Model | PoE-S25 |
| Communication speed | 300 to 230400bps |
| Stop bits | 1/2 |
| Parity | Odd/Even/None |
| Bit length | 7/8 |
| Flow Control | XON/XOFF RTS/CTS DTR/DSR |
| Data Packet Delimiter | Delimiter code/timeout/data length |
| Operating conditions | Temperature: ±0 to 50°C Humidity: 30 to 80% (no condensation) |
| Input Voltage Range | USB power supply: 5V |
| Current consumption | 0.4A/5V (2W) |
| External dimensions (mm) | W94 × H26 × D105mm (excluding protrusions) |
| Weight (g) | Approximately 250g |
| Connector Interface | Serial side: Dsub25 pin female (DTE) [Set screw: M2.6 mm screw] Ethernet side: RJ45 [10/100 Base] |
| On-board protocols | Serial side: Asynchronous no-protocol Ethernet side: ARP, TCP/IP, UDP, ICMP, TELNET (partially) |
