PP-OPT Series RS232C /OpticalConverter

Manufacturer: Datalink
Model: PP-OPT Series

Features

Device-to-device communication distance can be extended up to 10 km using a commercially available single mode optical cable (DSC or SC+SC)
RS232C/RS422/USB (COM) optical converter designed for harsh FA environments, with protection against lightning surges and electrostatic discharge
Optical fiber reduces malfunctions and device damage caused by inductive lightning and external electrical noise

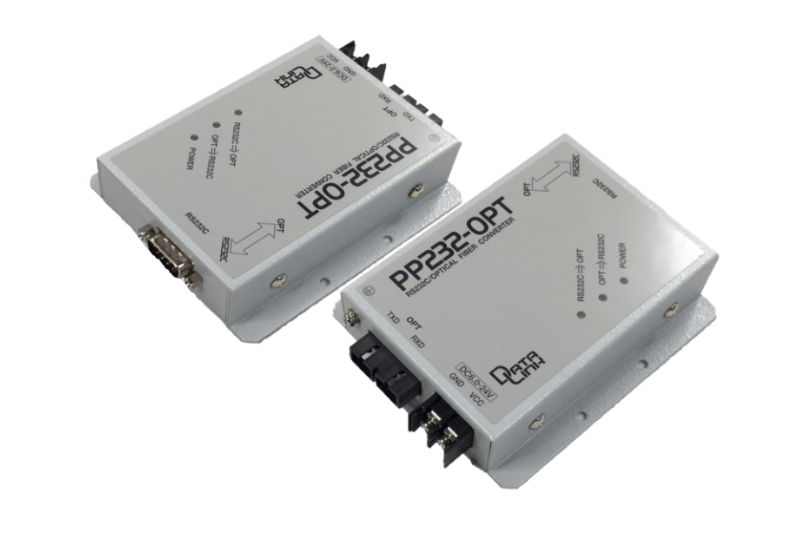

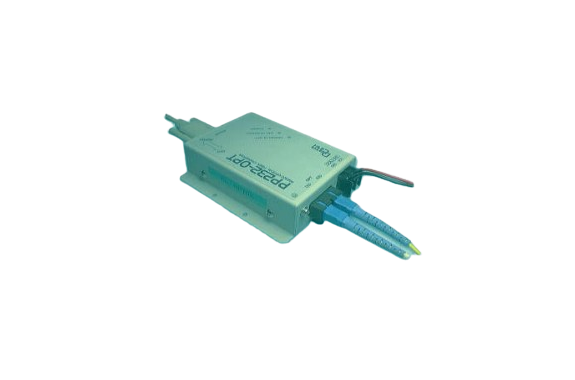

PP232-OPT supports bidirectional conversion of TXD (RXD), RTS (CTS), and DTR (DSR) for RS232C optical communication
Compatible with control-line devices such as Mitsubishi sequencers and Omron PLCs

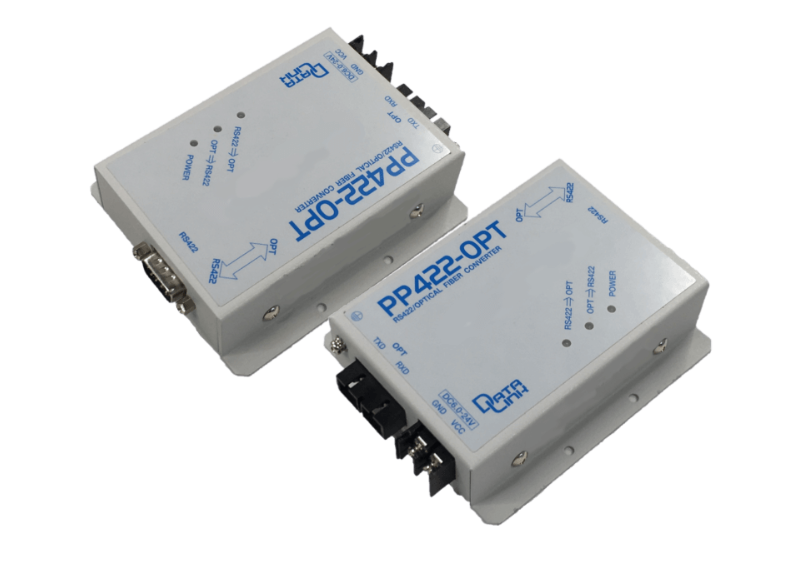

PP422-OPT does not convert DTR (DSR)

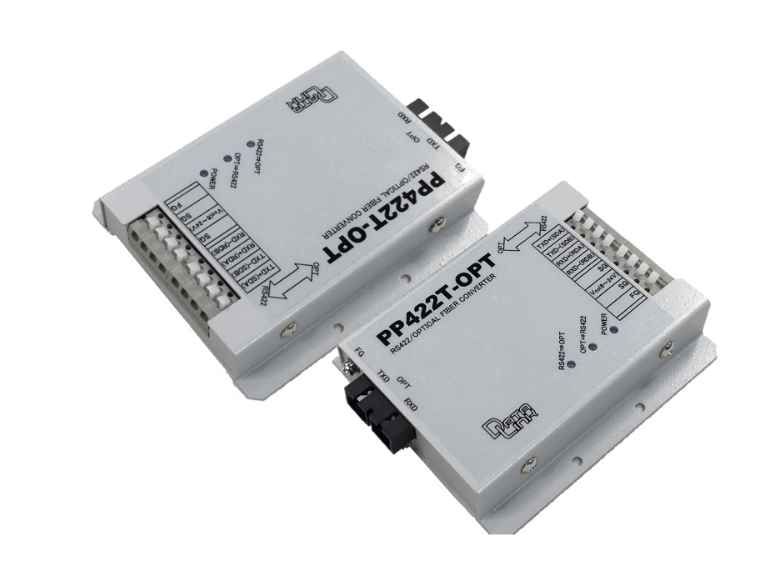

PP422T-OPT converts only TXD (RXD)
Maximum communication speed is 115.2 kbps

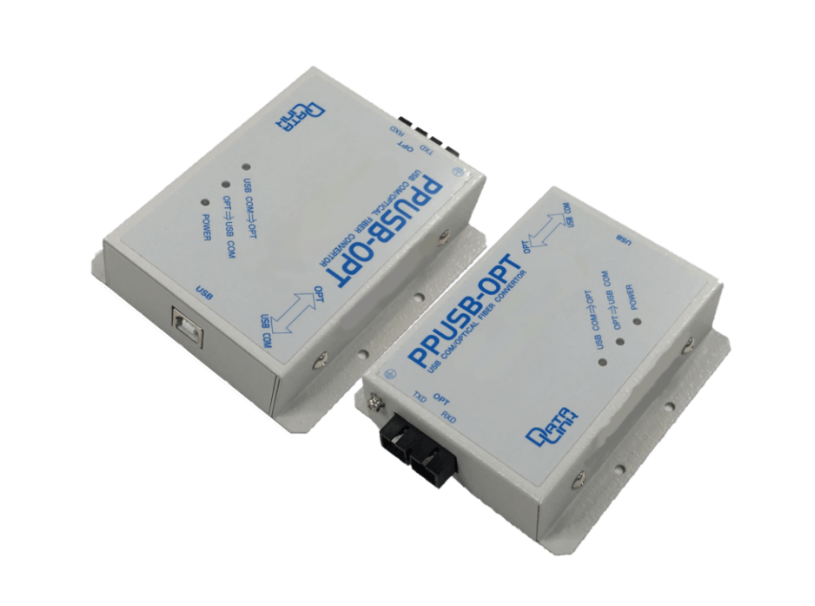

(PPUSB-OPT supports virtual COM port communication via USB)
Power supply must be provided by the customer for PP232-OPT, PP422-OPT, and PP422T-OPT (input voltage: DC6V to DC24V)
Dedicated AC adapter for AC100V input is available separately
PPUSB-OPT is powered by the connected PC
RoHS compliant
Can be mounted on a DIN rail using an optional DIN rail mounting bracket
Optical converters are widely used in:
Factory automation (PLC connections)
Medical equipment (e.g., MRI)
Transportation infrastructure (e.g., signal control systems)
Energy applications (e.g., photovoltaic power generation monitoring)

Optical converter that uses optical fiber to extend communication distance for RS232C, RS422, and USB (COM) interfaces
Long-distance transmission: Supports communication up to 10 km using optical fiber, overcoming the limitations of copper wire
Multiple interface combinations: RS232C, RS422, and USB (COM) ports can be freely combined (9 possible combinations)
High reliability: Ensures stable communication even in environments with heavy electrical noise, such as factory automation, medical equipment, and energy monitoring systems
Strong resistance to electromagnetic noise: Optical fiber inherently blocks lightning surges and electromagnetic interference (EMI)
OS compatibility: Supports Windows 7 through Windows 11

◆ Specifications for each model

Model	PP232-OPT (single unit)	PP422-OPT (single unit)	PP422T-OPT (single unit)	PPUSB-OPT (single unit)
Input voltage	DC6V~DC24V	DC6V~DC24V	DC6V~DC24V	Powered by DC5V connected PC
Maximum communication speed	115.2Kbps	115.2Kbps	115.2Kbps	USB 1.0 (2.0) compliant
Interface	RS232C/light	RS422/optical	RS422/optical	USB(COM)/Optical
Conversion signal line	TXD/RTS/DTR (RXD/CTS/DSR)	TXD/RTS (RXD/CTS)	TXD(RXD)	TXD/RTS/DTR (RXD/CTS/DSR)
Weight	Approximately 294g	Approximately 290g	Approximately 263g	Approximately 283g
Serial Connector	Dsub9 pin male (DTE arrangement)	Dsub9 pin male	8PIN terminal block	USB Series B Female
Supported OS	No OS dependence	No OS dependence	No OS dependence	Japanese Windows 7~11

Operating temperature	Temperature: 0 to 50°C (AC adapter sold separately: 0 to 40°C) Humidity: 30 to 80% (no condensation)
Power consumption	0.5W (max) 0.9W (max): PP422T-OPT only
Maximum communication distance	10Km
External dimensions	W93 × H27 × D104mm (excluding connectors and other protrusions) PP422T-OPT has the following dimensions: W93 × H20 × D106mm (excluding connectors and other protrusions)
Compatible optical connector	DSC or SC+SC
