- An AC adapter is also available for separate purchase.
- You can fix the device to a DIN rail by attaching the DIN rail mounting bracket.
Datalink Corporation

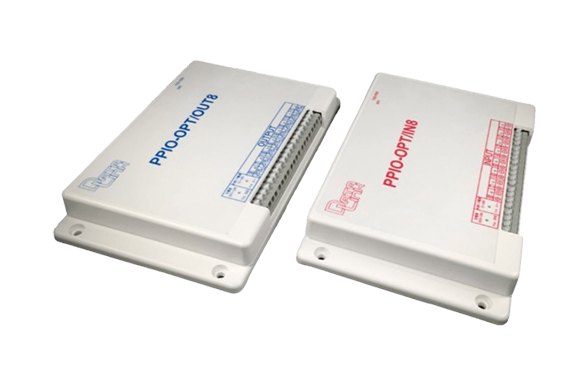

Datalink PPIO-OPT Series I/O devices that communicate via optical fiber
Manufacturer: DataLink
Model: PPIO-OPT Series
Features
- The “PPIO-OPT” system operates in pairs, consisting of PPIO-OPT/OUT8 and PPIO-OPT/IN8.
- The system directly copies 8 port inputs to 8 port outputs.
- Users can connect the devices with SM (single mode) optical fiber, allowing a maximum transmission distance of 5 km.
- The design includes photoisolation for all inputs and outputs.
- LED indicators show the ON/OFF status of each input and output (LED lights up when ON).
- Inputs and outputs display ON/OFF status using LEDs (LED lights up when ON).
Specifications
◆ Usage environment, power supply, size
| Operating conditions | Temperature: 0~50°C Humidity: No condensation |
| Storage conditions | Temperature: -30°C ~ +80°C |
| Terms of use | Supply voltage: DC6V~24V Current consumption: 30mA |
| Size | Width: 200mm Length: 130mm Height: 25mm |
| Weight | 300g each |
| I/O Connectors | ML-1400-S1-4P (SATO PARTS) equivalent product |
◆Connection with external devices
| Insertion Wire | Wire area: 1.5mm² Coating wire length: 9~10mm |
| Input photocoupler forward current | IF = ±4mA (bidirectional) |
| Output Photorelay | Blocking voltage: 80V On-state current: 3A (max) On-state resistance: 100mΩ Dielectric strength: 1500Vrms (min) |
◆Options
