Datalink Corporation

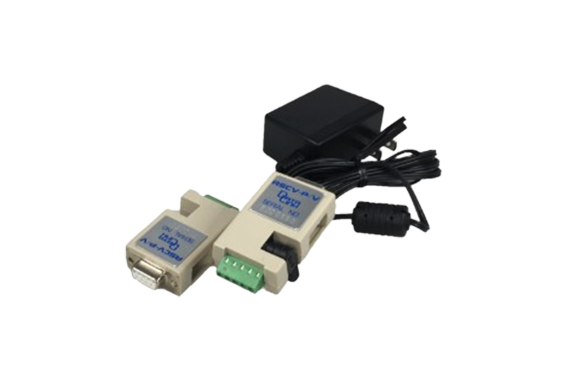

Datalink RSCV-P/V Series RS232C/Current Loop Conversion Connector
Manufacturer: DataLink
Model: RSCV-P/V Series
Features
- Delivers compact and lightweight RS232C to current loop conversion for efficient space-saving use
- Supports extended communication distance between RS232C devices when two units are connected as a set
- Isolates the current loop side from RS232C using photocouplers for stable signal transmission
- RSCV-PV and RSCV-P feature an even smaller and lighter design for direct connection to adjacent PC/AT compatible RS232C ports without obstructing other interfaces
- Comes with a Dsub9-pin female RS232C connector in DCE arrangement for direct connection to Dsub9-pin male (DTE) ports
- Equipped with a small 5-pin terminal block for the current loop connector, set to a fixed loop current of 20mA
- Operates using the included standard AC adapter for reliable power supply
Specifications
| Model | RSCV-PV |
|---|---|
| Extension distance and maximum communication speed | 57.6Kbps/1,000m 19.2Kbps/2,000m 9.6Kbps/3,000m 4.8Kbps/4,000m 2.4Kbps/5,000m |
| Signal conversion line | TXD/RXD |
| RS232C side connector | Dsub 9 pin female (DCE) |
| Current loop side connector | 5-pin terminal block (screw-type) |
| Power Specifications | AC adapter (standard accessory) |
| Main unit current consumption | Maximum DC5V/40mA*1 |
| External dimensions (mm) | W32 × H16.5 × D63.5 |
| Product weight | Approximately 25g |
