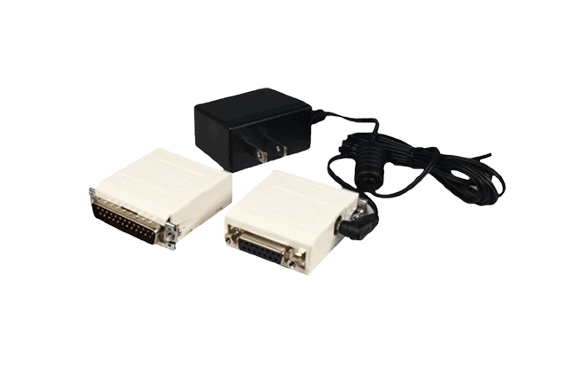

RSCV-R Series RS232C⇋RS422 Converter

Datalink RSCV-R Series RS232C/RS422(RS530) Conversion Connector

Manufacturer: DataLink
Model: RSCV-R Series

Features

- Provides RS232C to RS422 signal conversion for reliable communication between devices
- Offers flexible power options through an external AC adapter (sold separately) or via pins 9 and 14 of the RS232C port
- Equipped with a Dsub25 male RS232C connector and M2.6 x 6 male mounting screw
- Features a Dsub15 female RS422 connector with M2.6 x 6 female mounting screw

RS232C side
Dsub25 male
(DCE arrangement)

RS422 side
Dsub15 female

Power supply
RS232C pins 9/14

Maximum communication speed
115.2Kbps

Maximum transmission distance
1200m

—

RTS/CTS
or
DTR/DSR

The RSCV series is a compact and lightweight RS232C to RS422 converter designed in a connector-sized format
It converts RS232C signal levels to RS422 signal levels, enabling seamless connection between RS232C and RS422 devices
Supports communication distances of up to 1200 meters between RS232C and RS422 devices
Available in models with or without power supply requirements and with optional isolation functions
Complies with the RoHS directive for environmentally conscious design

Model	RSCV-R (also ROHS)
Maximum communication speed	115.2Kbps
Converted Signal	TXD/RXD RTS/CTS or DTR/DSR
External dimensions (mm)	W53/H19/D61
Weight (g)	Approx. 42g
Maximum Transmission Distance	1200m
Current consumption (maximum at 5V)	60mA or less
Insulation Function	Yes
RS232C side	Dsub 25 pin male
RS422 side	Dsub 9 pin female
Power supply	AC adapter (included standard item)
Noise Countermeasures	Surge Absorber
