Datalink RSCV-RJ Series RS232C/RS422 Conversion (RS232C Extender) Connector Set
Manufacturer: DataLink
Model:RSCV-RJ Series
Features
- RSCV-RJ is an RS232C/RS422 conversion connector. It is used in pairs.
- It is possible to extend the distance between RS232C devices up to 1.2 km using a commercially available LAN cable.
- RSCV-RJ is a compact and lightweight RS232C to RS422 converter that connects directly to a Dsub9-pin male RS232C port
- Designed for paired use with models RSCV-RJ/S and RSCV-RJ/C
- Equipped with an RJ45 connector on the RS422 side, allowing direct use of standard straight LAN cables for simplified wiring and installation
- Enables communication extension between RS232C devices up to 1.2 km via RS422 conversion
- Comes standard with an AC adapter for reliable power supply
- Optional LAN cables are available for indoor use in lengths of 100, 200, and 300 meters
Specifications
| Model | RSCV-RJ/S, RSCV-RJ/C |
|---|---|
| Maximum communication speed | 115.2Kbps |
| Conversion signal line | TXD/RXD |
| External dimensions | W33 × H20 × D60mm |
| Weight | Approximately 22g |
| Power supply | Included AC adapter |
| Current consumption | 50mA/5V (max) |
| Maximum communication distance | 1.2km |
| RS232C | Dsub9P female |
| RS422 | RSCV-RJ/S RJ45 Normal RSCV-RJ/C RJ45 Reverse |

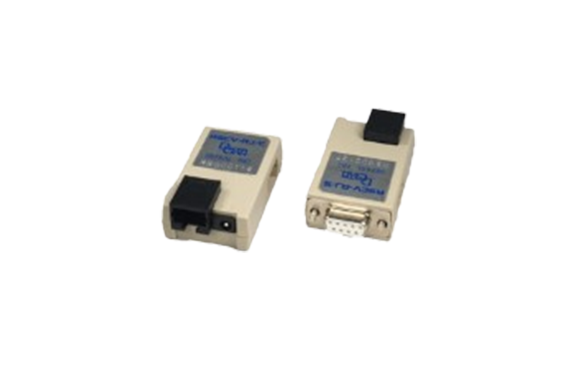

◆RSCV-RJ/S, RSCV-RJ/C
RSCV-RJ/S
RSCV-RJ/C
